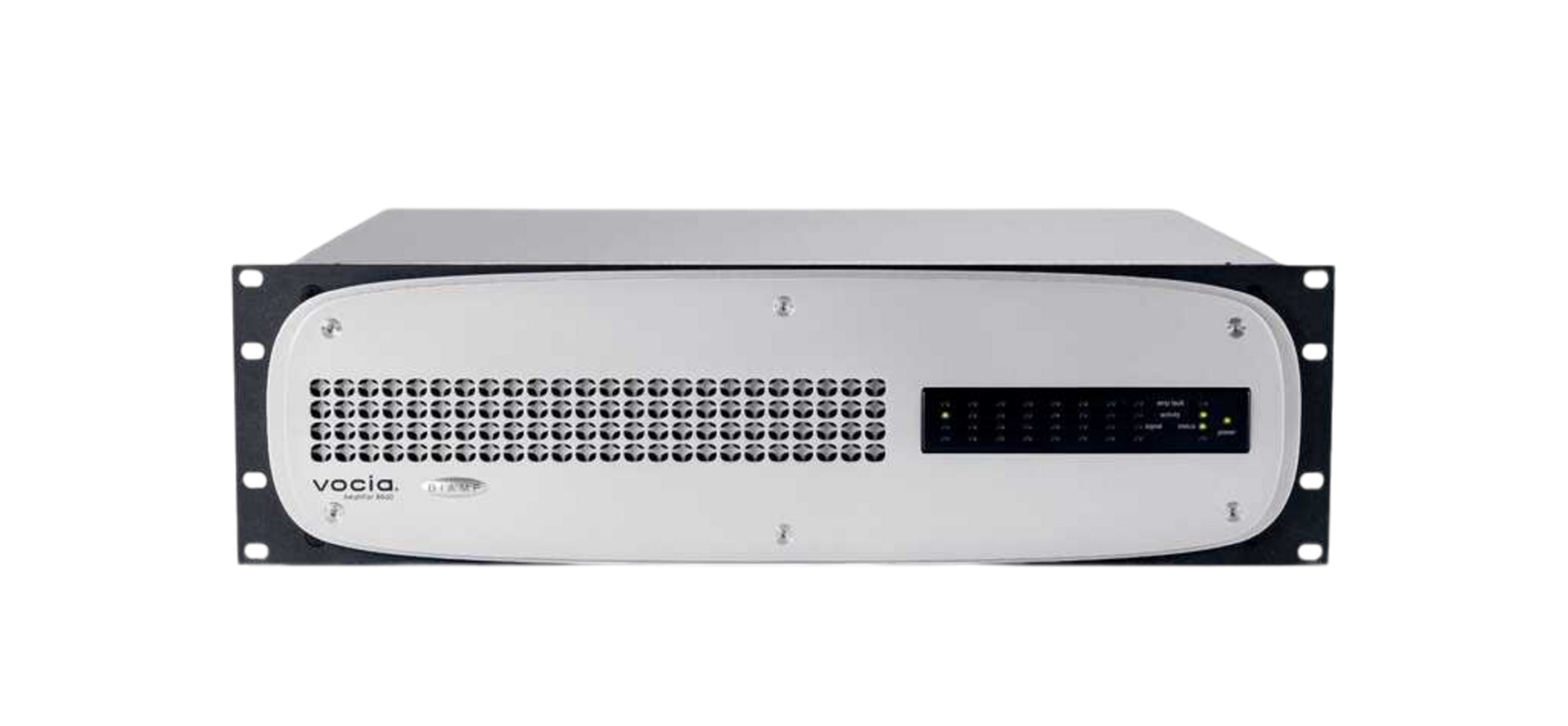

Vocia VA-8600
Multi-channel amplifier with up to 8-channels of modular amplification for use in Vocia systems (amplifier module cards sold separately).
Multi-channel amplifier with up to 8-channels of modular amplification for use in Vocia systems (amplifier module cards sold separately).
Key Features
- Modular based design
- Amplification modules with software-configurable power levels/load options:
- Eight amplification modules per frame with 100 to 600 watts per module (maximum of 2400 watts peak per chassis)
- 70 volts or 100 volts with direct drive capability, or low-impedance (4Ω or 8Ω) operation
- Maximum of 2400 watts per chassis
- Failover capability between channels and amplifiers:
- Device-to-Device
- 1:1
- Dual 3:1 (VFOM-1 module required)
- 7:1 (VFOM-1 module required)
- LED Indication:
- Amplifier failure
- Clip present
- Fan stuck-rotor
- Heat sink temperature fault
- Signal peak
- Signal present
- Local non-volatile storage of emergency messages
- CobraNet audio and control data over a single Ethernet cable
- Dual Ethernet ports for redundancy
- Heavy duty removable terminal block connectors for speaker line connections
- Rotary switches for unit identification
- Rack mountable (3RU)
- CE marked and RoHS compliant
- 5-year warranty
- Compliant with the US Trade Agreement Act (TAA)
The Vocia® VA-8600 is a digital networked multi-channel amplifier for use in Vocia® systems. The VA-8600 is CobraNet® enabled and can support up to eight AM-600 modular amplifier cards. These are insectionidually software configurable from 100â600 Watts per channel up to a maximum of 2400 Watts of power per chassis. 70V, 100V and low-impedance outputs are software selectable per card. The amplifiers can be configured for channel-to-channel or device-to-device failover. The amplifier uses comprehensive fixed-chain digital-signal processing within the device, including volume control, ducking, equalization, compressor/limiter, speaker crossover, delay, and output gain.
Emergency messages for life-safety compliant systems are stored in non-volatile memory within the VA-8600. Intuitive software provides audio system design via PC. Two RJ-45 connectors on the rear panel of the VA-8600 provide redundant connectivity to control data and audio over a single Ethernet cable and caters for an optional page active relay or dual 3:1 / 7:1 failover module.
The Vocia VA-8600 complies with the United States Trade Agreement Act (TAA), allowing it to be included in GSA Schedule contractorsâ sales bids for the U.S. federal government.
