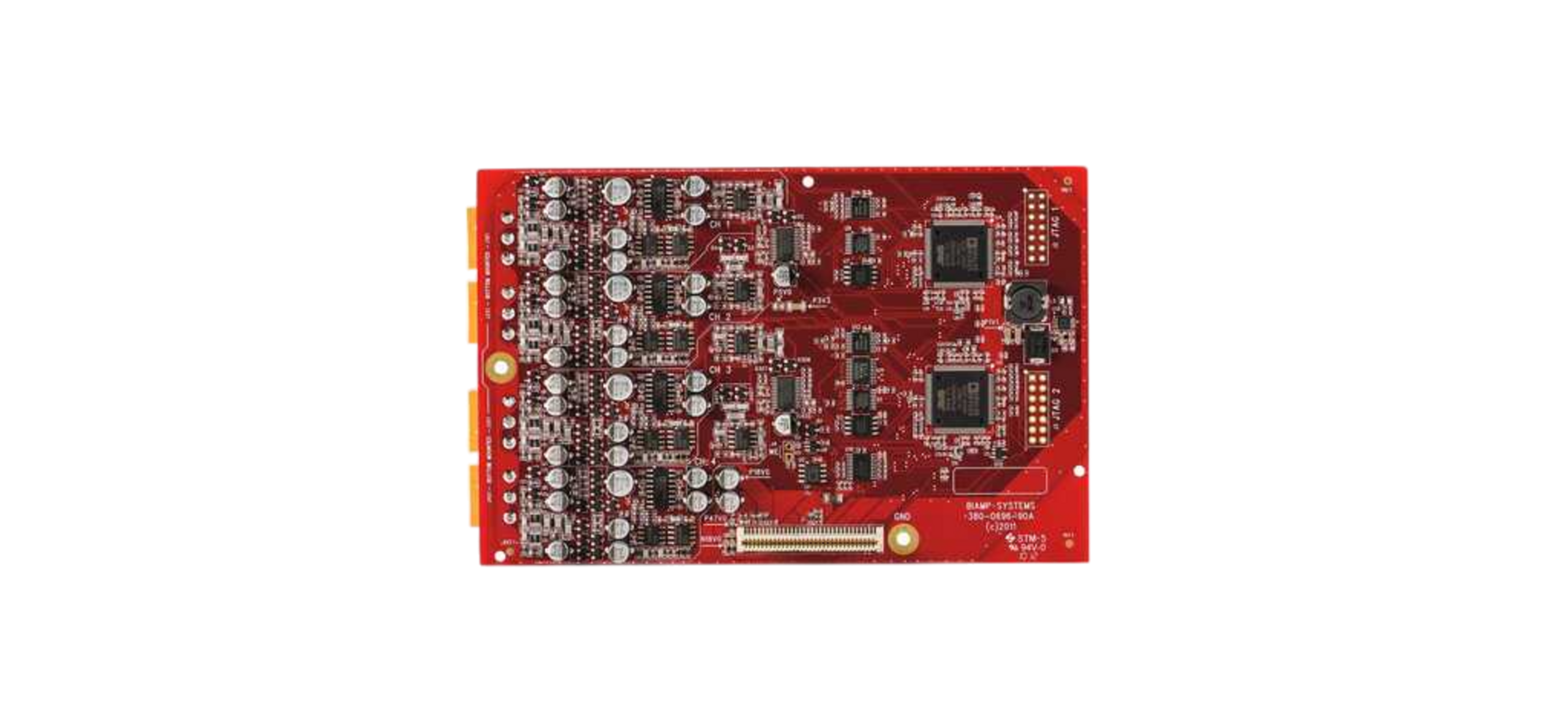

Tesira EEC-4
4-channel mic/line input card with AEC for the Tesira EX-MOD.
4-channel mic/line input card with AEC for the Tesira EX-MOD.
Key Features
- Four channels of balanced microphone or line level input with AEC (Acoustic Echo Cancellation)
- Plug-in barrier strip connectors
- 0 – 66 dB gain, adjustable in 6 dB increments
- Clip indicator
- +48 volt Phantom Power
- -100 dB to +12 dB fader range for level
- Signal invert for reverse polarity
- RoHS compliant and AES grounded
- 5-year warranty
- Compliant with the US Trade Agreement Act (TAA)
The Tesira EEC-4 expander card is an optional card that can be installed in the Tesira EX-MOD. Each EEC-4 provides four channels of mic or line level audio input with AEC (Acoustic Echo Cancellation). The inputs are electrically balanced and provided on plug-in barrier strip connectors. Software control of each input includes gain with clip indicator, +48V phantom power, mute, level, and signal invert.
Benefits:
- Modular input card can be mixed-and-matched in Tesira EX-MOD
- Large input gain sensitivity allows for analog input from virtually any source
- Sona⢠Acoustic Echo Cancellation
- Fully configurable and controllable with software
- Premium quality pre-amp for clean, natural sound
The Tesira EEC-4 & Tesira EEC-4 CK complies with the United States Trade Agreement Act (TAA), allowing it to be included in GSA Schedule contractorsâ sales bids for the U.S. federal government.
