Tesira SERVER-IO AVB
Configurable I/O DSP with up to 48 channels of I/O, 1 DSP-2 card (2 additional DSP-2 cards can be added), and 1 AVB-1 network card.
Configurable I/O DSP with up to 48 channels of I/O, 1 DSP-2 card (2 additional DSP-2 cards can be added), and 1 AVB-1 network card.
Key Features
- Configured with one AVB-1 network card
- Supports up to three DSP-2 cards
- Supports up to 12 I/O cards with a maximum of 48 channels of analog audio
- Up to 420×420 channels of digital I/O over AVB
- Supports optional 32×32 CobraNet audio networking
- Supports optional 64×64 Dante audio networking
- System configuration and control via Ethernet or serial connection
- Front panel OLED display for device and system information
- SpeechSense and AmbientSense processing algorithms
- Signal processing via intuitive software allows configuration and control for signal routing and mixing, equalization, filtering, dynamics, delay and much more
- Extensive input, output and logic expansion devices supported as part of the Tesira digital audio networking platform
- Rack mountable (3RU)
- CE marked, UL listed, and RoHS compliant
- 5-year warranty
- Compliant with the US Trade Agreement Act (TAA)

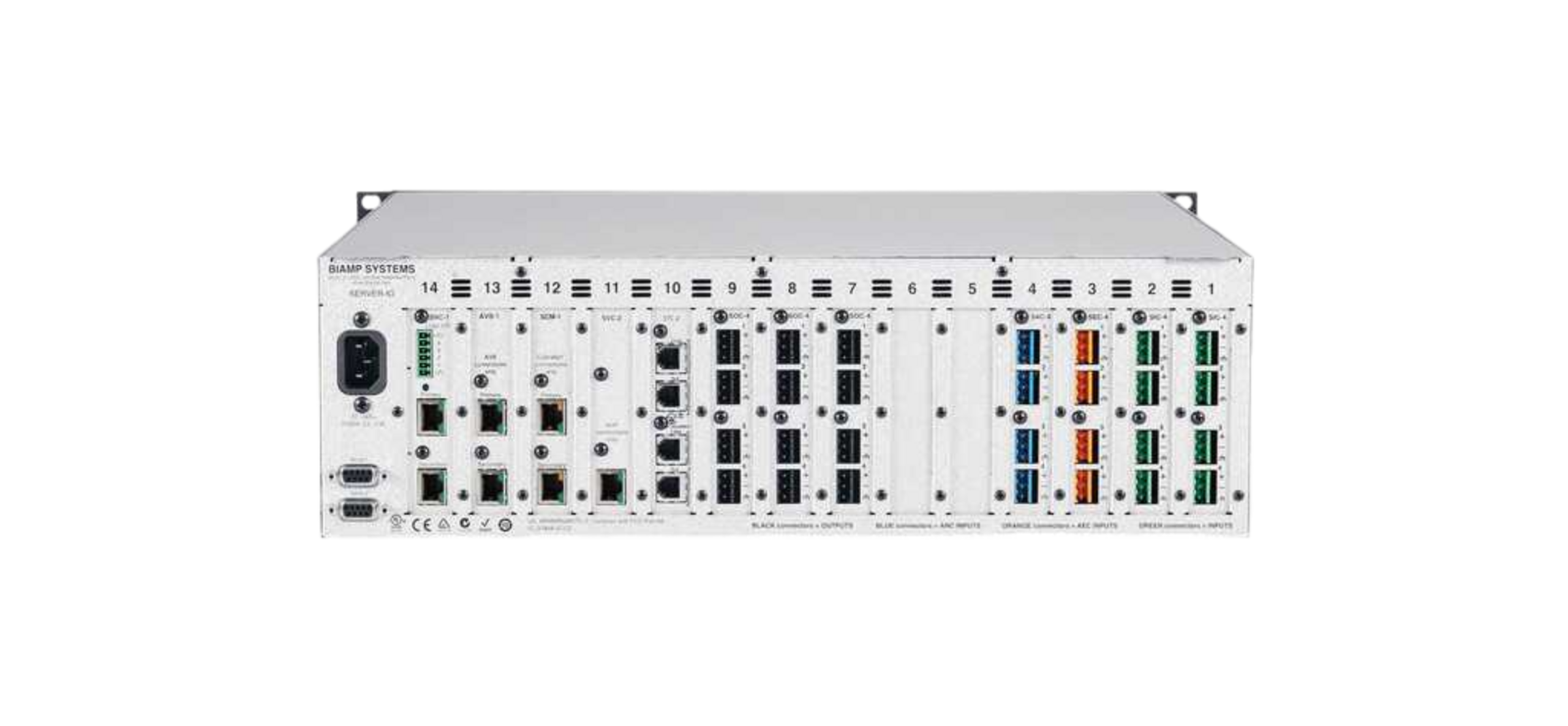

The Tesira SERVER-IO AVB is a digital signal processor.
It is factory configured with one DSP-2 card (capable of handling up to two additional DSP-2 cards) and one AVB-1 network card (capacity for three total audio networking cards per server). The combinations of networking cards may include one AVB-1 Audio Video Bridging network cards, up to two SCM-1 CobraNet network cards, and up to two DAN-1 Dante network cards in any configuration.

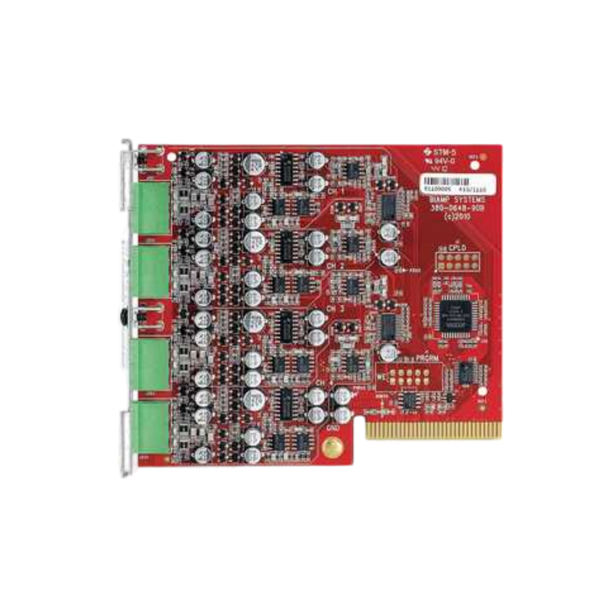

The SERVER-IO AVB can support up to 12 standard Tesira I/O cards for up to 48 channels of audio I/O (e.g. microphone and line level, VoIP, and FXO telephone interface).
The SERVER-IO AVB can be used as a standalone device or with Tesira expanders to form a highly scalable audio network.
The Tesira SERVER-IO AVB complies with the United States Trade Agreement Act (TAA), allowing it to be included in GSA Schedule contractorsâ sales bids for the U.S. federal government.
