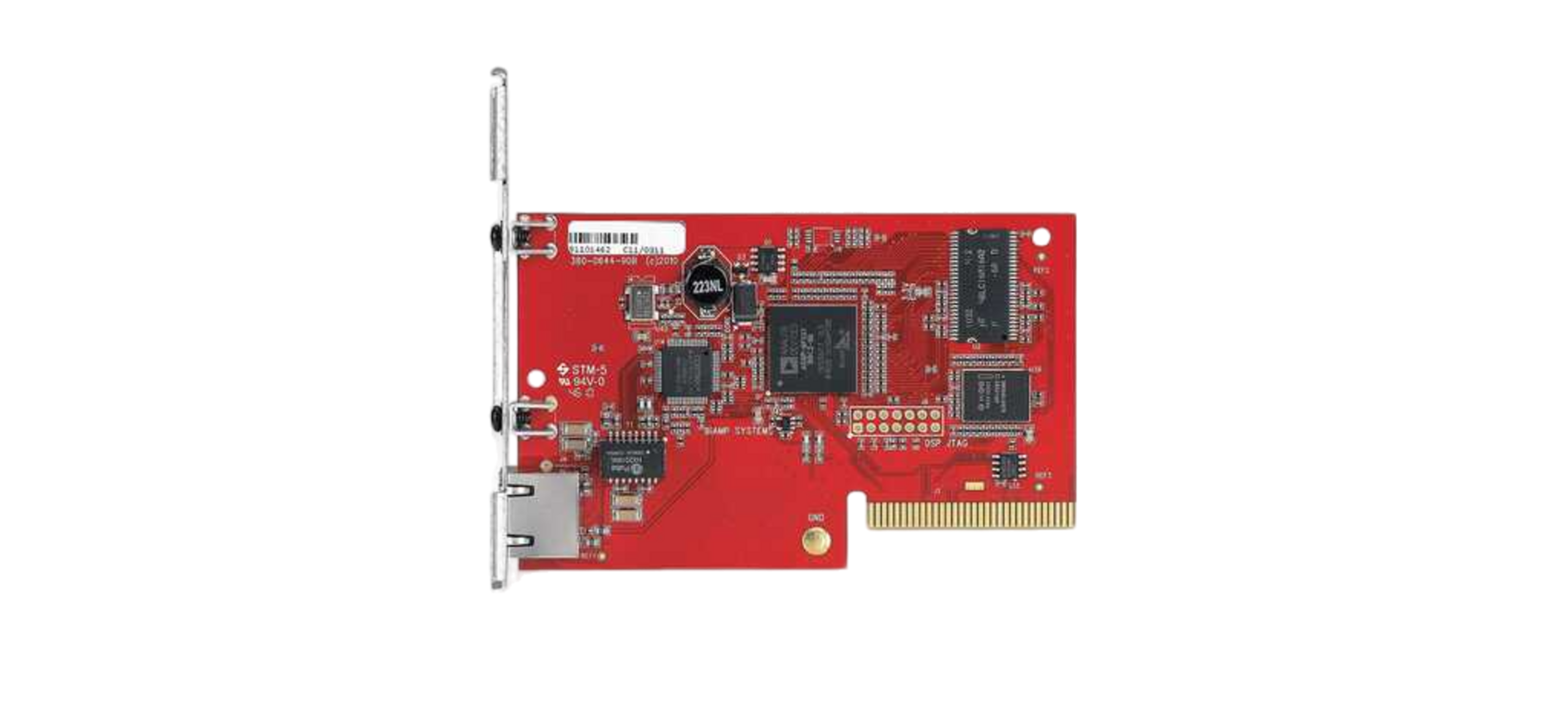

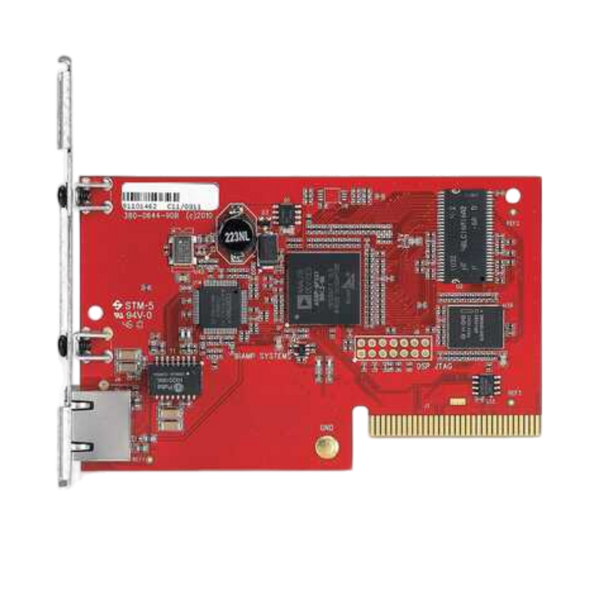

Tesira SVC-2 Card Kit
Tesira 2-line VoIP telephone interface card (card kit) for use in Tesira SERVER and Tesira SERVER-IO.
Tesira 2-line VoIP telephone interface card (card kit) for use in Tesira SERVER and Tesira SERVER-IO.
Key Features
- Control via Tesira software or third-party control
- Logic control within Tesira
- Caller ID, Hold capability, Redial, 16-entry Speed Dial
- Adjustable auto-answer
- Country-specific tone plans
- SIP v2 (RFC 3261 and companion RFCs)
- SIP authentication
- Voice activity detection
- On-hook dialing
- Multiple CODEC support
- RoHS compliant
- 5-year warranty
- Compliant with the US Trade Agreement Act (TAA)
The Tesira SVC-2 is a modular Voice over Internet Protocol (VoIP) card for use with Tesira SERVER and SERVER-IO devices. The SVC-2 allows a Tesira system to connect directly to IP-based telephone systems. When used in conjunction with Acoustic Echo Cancellation (AEC) processing, Tesira becomes a powerful, flexible, and affordable conferencing platform.
VoIP FEATURES
- SIP v2 (RFC 3261 and companion RFCs)
- SIP Authentication
- Voice activity detection
- Comfort noise generation
- Dynamic jitter buffer
- Packet loss concealment
- On-hook dialing
- Multiple CODEC support
- G.711μ
- G.711A
- G.722
- G.729AB
- G.723.1
NETWORK FEATURES
- Static DHCP IP address assignment
- QoS
- ToS (RFC 791)
- 802.1p/q
LOGIC CONTROL INPUTS: Answer, End
CONTROL OUTPUTS: Ring Indication, Line in Use, Line ready
THIRD PARTY COMMANDS: Answer, End, Auto-answer, On/Off hook, Hold, Dial number, Dial speed-dial, Set speed-dial, Redial, Last number dialed, Called ID data, Line in-use status, Line ready status, Ringing status, Transmit level adjust, Receive level adjust
The Tesira SVC-2 & Tesira SVC-2 CK comply with the United States Trade Agreement Act (TAA), allowing it to be included in GSA Schedule contractorsâ sales bids for the U.S. federal government.
