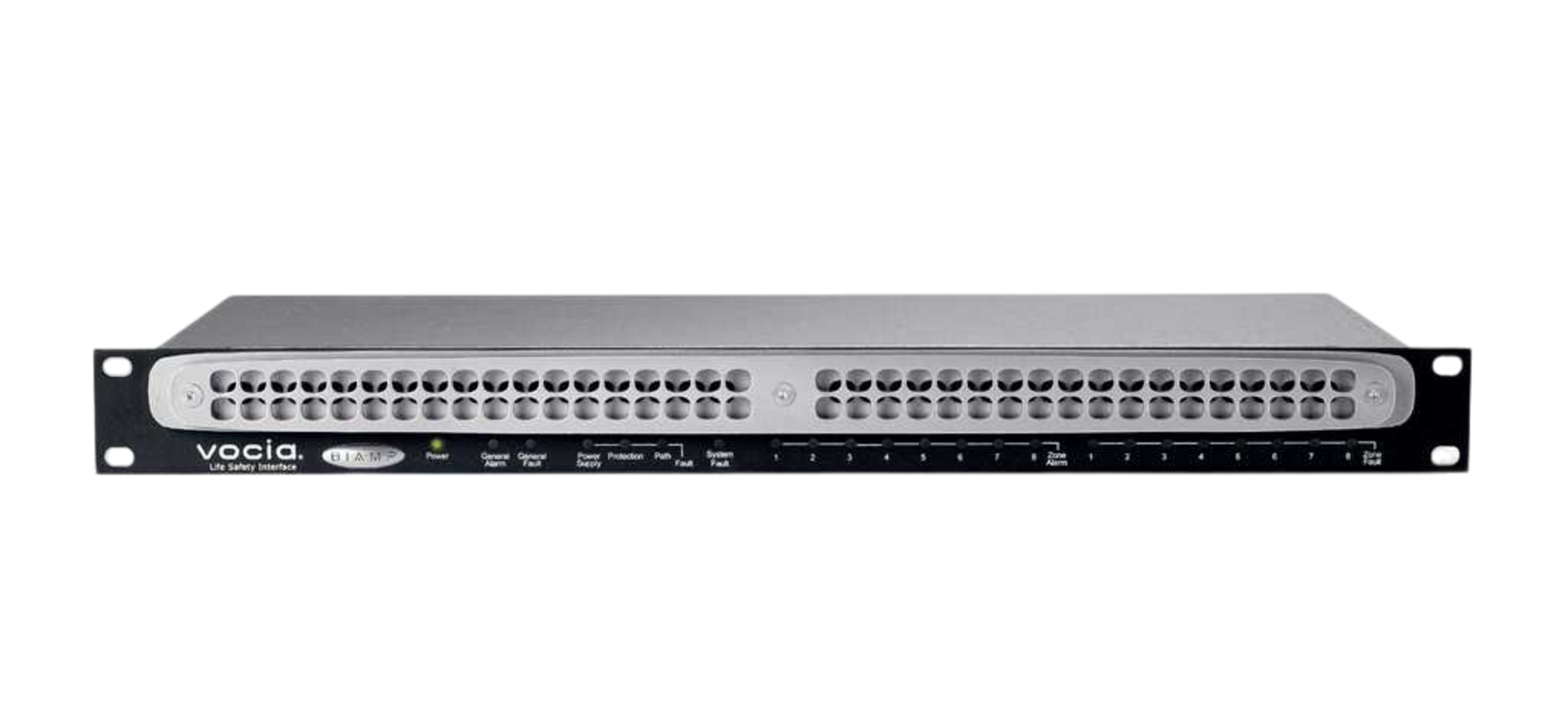

Vocia LSI-16e
Vocia life safety interface, enhanced with 20 discrete inputs.
Vocia life safety interface, enhanced with 20 discrete inputs.
Key Features
- Parallel I/O ports for direct interface with fire alarm and emergency equipment
- Eight monitored I/O and eight control inputs
- Redundant network connection and power supply options
- Power and data over a single Ethernet cable
- Local storage of configuration data
- Rotary switches for unit identification
- Up to four discrete emergency inputs
- 16 additional general purpose inputs can be programmed to play emergency message, enable zone reset or zone silence; maximum ten inputs can be assigned per emergency zone
- Each general purpose input can be programmed as TTL, high range, or monitored high range
- General purpose inputs allow monitoring for short to ground and open circuit
- Up to 500 virtual inputs via RS-232 or Ethernet
- Provides system heath monitoring via RS-232 or Ethernet
- Status LEDs
- Rack mountable (1RU)
- EN 54-16 certified, EN 60849 and AS 60849 verified, CE marked, and RoHS compliant
- 5-year warranty
- Compliant with the US Trade Agreement Act (TAA)
The Vocia® enhanced Life Safety Interface 16e (LSI-16e) is a networked device that serves as an interface between a Vocia system and emergency or fire alarm systems. The LSI-16e may accept up to three sources of power: main power is from an external, standards compliant, battery backed 24V DC source but the LSI-16e can also utilize Power over Ethernet (PoE) delivered via either of its two network ports. The device is equipped with parallel I/O ports for direct interface to fire and emergency control equipment. The LSI-16e uses Ethernet-based control protocols to function within a Vocia system.
The Vocia LSI-16e complies with the United States Trade Agreement Act (TAA), allowing it to be included in GSA Schedule contractorsâ sales bids for the U.S. federal government.
