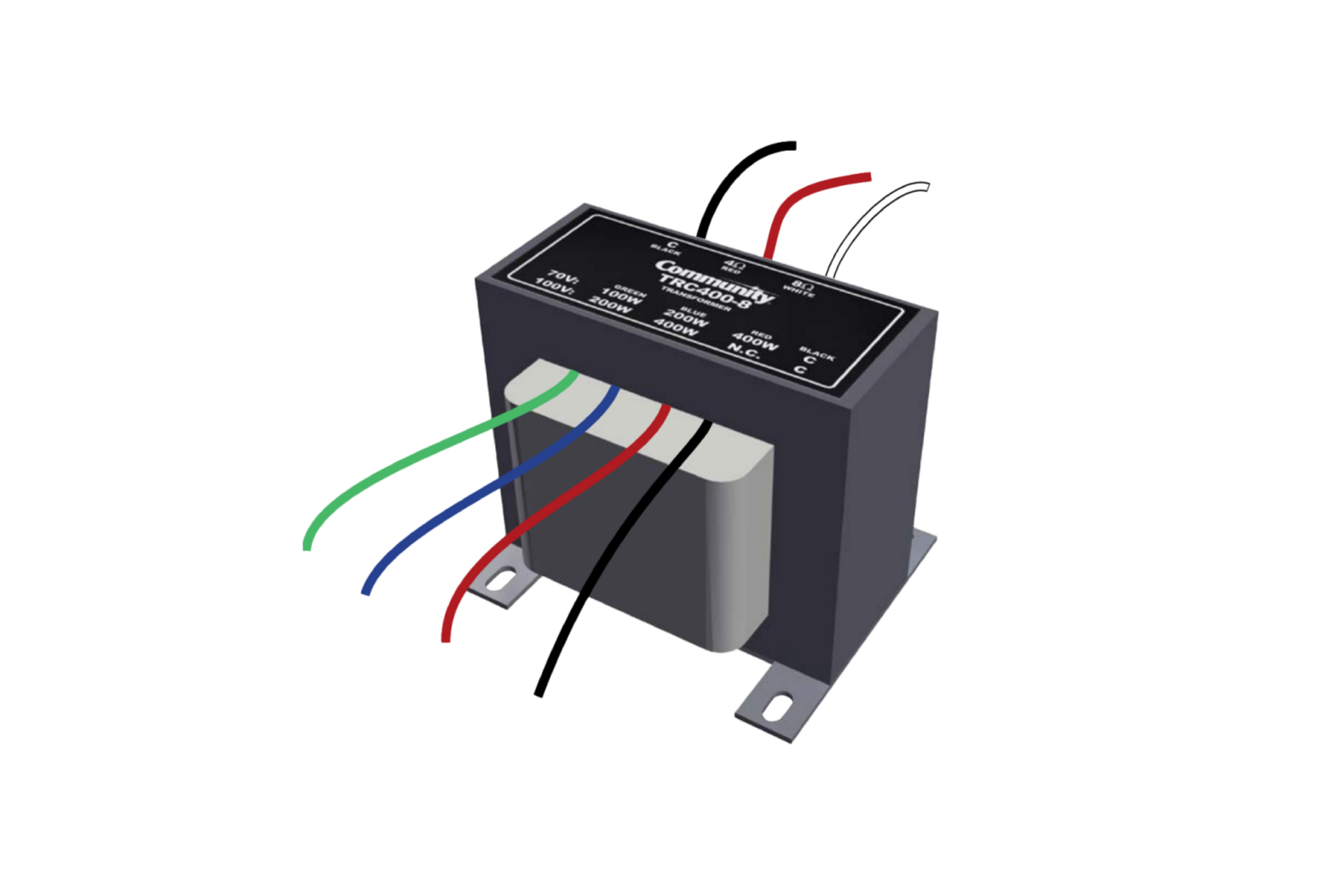

Community TRC400-8
400 Watt, 70V/100V, 8-ohm line transformer.
400 Watt, 70V/100V, 8-ohm line transformer.
Key Features
- 400 watt, 70/100/140V line transformer, 8 ohms
- 70V and 100V Loudspeaker Distribution Systems
- Can be used with R SERIES (R.35, R.5, R1, R2) and W SERIES systems
- Use for high power distributed announcement systems
- Can be used to step up or step down voltage
- Low insertion loss
- Excellent low frequency performance at full power
- 5-year warranty
The TRC400-8 is a 400 watt line transformer used to step down the voltage and impedance of constant voltage audio distribution lines to the voltage level and impedance required by loudspeakers. It can also be used to step up the voltage of an amplifier to the voltage needed for a distribution line. The TRC400-8 has three wattage taps. The taps allow insectionidual loudspeakers to be adjusted to operate at the same or different power levels compared to other loudspeakers in a system on the distribution line. The input taps on the TRC400-8 allow it to be used with 70V and 100V distribution systems.
The output taps of the TRC400-8 are designed to drive either 8 ohm or 4 ohm loudspeakers. The TRC400-8 is manufactured from high quality materials. Its high permeability iron core provides high power handling at low frequencies. The TRC400-8 has four mounting tabs that allow it to be bolted into back-boxes or other enclosures, to loudspeaker enclosures, or to loudspeaker mounting hardware. The stripped wire input and output leads can be easily connected to loudspeaker terminals and the distribution cable in a variety of ways including terminal strips, soldering, and wire-nuts.
