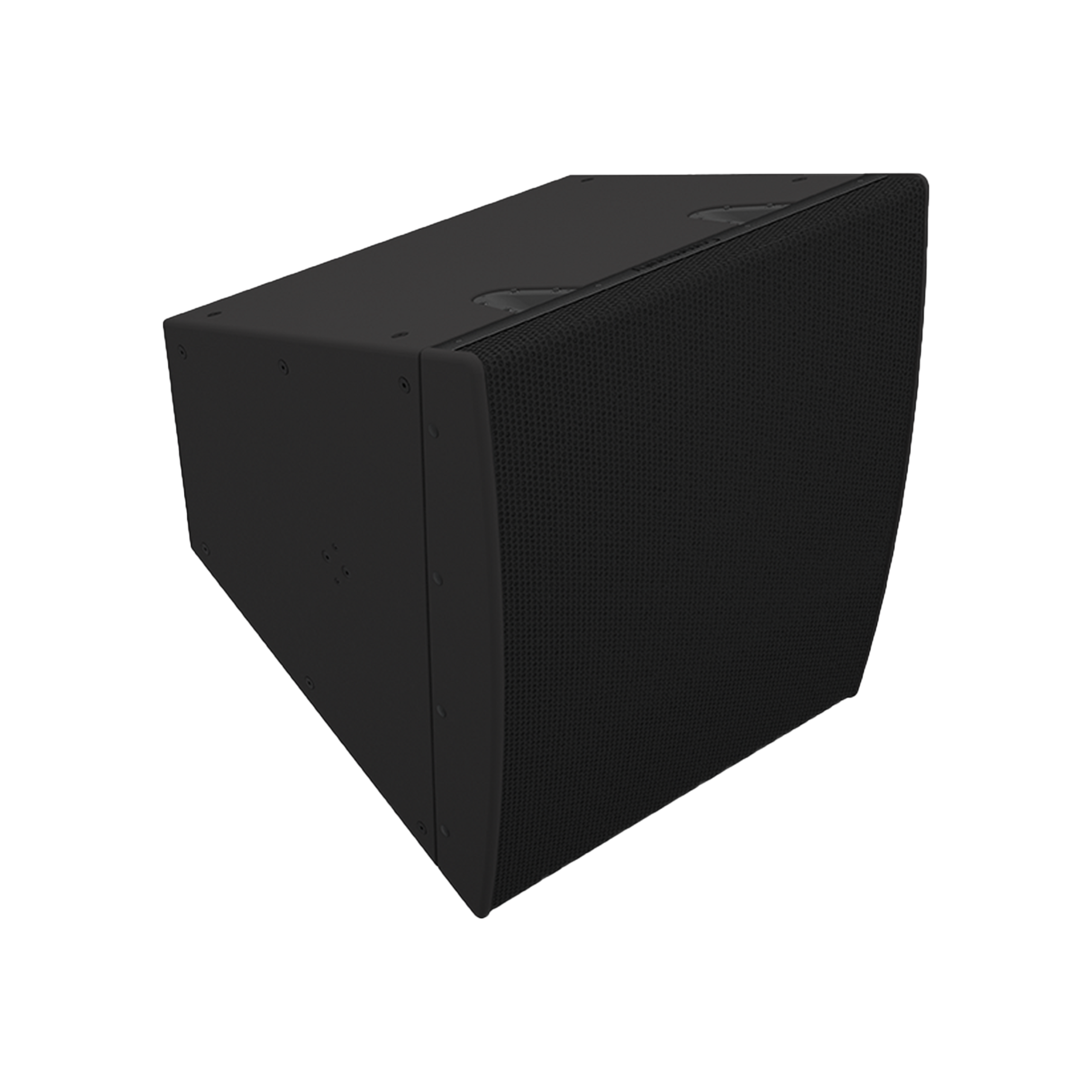

Community LVH-906WR/ASB Steerable Venue Horn
Active Standard, weather-resistant, large format, high output, horn loaded, steerable, 4 x 12-inch, 3-way black loudspeaker with variable vertical dispersion x 60° horizontal.
Active Standard, weather-resistant, large format, high output, horn loaded, steerable, 4 x 12-inch, 3-way black loudspeaker with variable vertical dispersion x 60° horizontal.
Key Features
- Active Standard, weather-resistant, arrayable, point source, steerable, loudspeaker
- Asymmetrical Beamforming more precisely directs sound where listeners are located
- 60° fixed horizontal dispersion with variable vertical coverage
- Designed for extraordinary performance in large venues
- Large format, horn-loaded triaxial array maintains pattern control to 400 Hz
- Colinear manifold for HF and MF beamforming
- Indoor or outdoor weather-resistant models, with custom color option
- EN54-24 and ISO 7240-24 certification
- 5-year warranty
- Compliant with the US Trade Agreement Act (TAA)

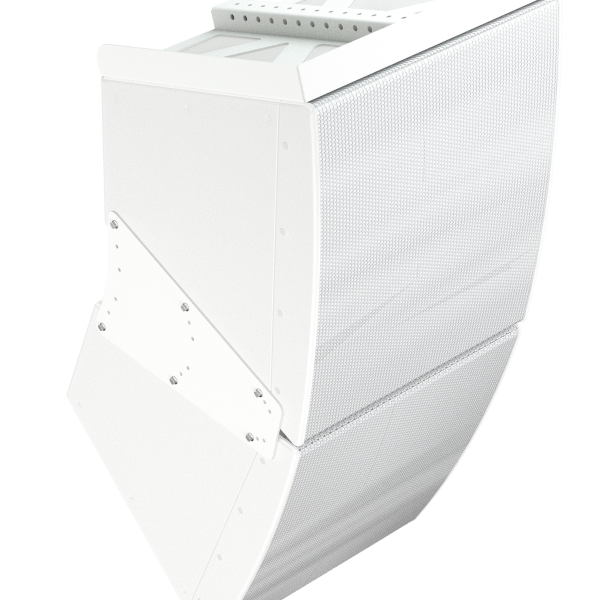

The Community LVH-900 Steerable Venue Horn is a large-scale, high output, arrayable point source loudspeaker that allows designers to tailor the coverage of a single loudspeaker, dual-cabinet array, or an array of multiple loudspeakers to precisely cover any audience area with smooth, even, full-range sound distribution. LVH-900 Steerable Venue Horn provides the highest output, widest bandwidth, and most consistent coverage of any large format point source loudspeaker on the market. Combined with Amplified Loudspeaker Controllers (ALC), the LVH-900 Steerable Venue Horn is able to meet the sound requirements for music and speech reinforcement in large houses of worship, stadiums, theaters, and other large venues.
Designed for exceptional performance in large venues, the Active Standard LVH-906/AS features a total of 4 x 12 inch LF drivers, 3 x Community M200 midrange compression drivers, and 4 x 1.5 inch HF compression drivers, with pattern control below 400 Hz and up to 137 dB continuous max SPL. The LVH-906/AS offers 60° of fixed horizontal dispersion, with three presets for vertical dispersion beamforming. Possessing advanced features, highly-focused dispersion patterns, optional weather-resistant models, and most importantly sonic excellence, all LVH-900 loudspeakers make installations not only fast and simple, but as functionally effective as possible.
Typical applications include music and speech reinforcement for large houses of worship, stadiums, theatres, and much more. Possessing advanced features, highly-focused dispersion patterns, weather-resistant construction, and most importantly sonic excellence, LVH-900 loudspeakers make installations not only fast and simple, but as functionally effective as possible.
All measurements are performed using a time-windowed impulse response to eliminate reflections, approximating an anechoic environment, at a distance of at least 6.0 m. All acoustic specifications are rounded to the nearest whole number. An external DSP using settings provided by Biamp is required to achieve the specified performance; further performance gains can be realized using the FIR loudspeaker optimization presets available in Biamp Community Amplified Loudspeaker Controllers (ALCs).
All LVH-9xx models comply with the United States Trade Agreement Act (TAA), allowing it to be included in GSA Schedule contractorsâ sales bids for the U.S. federal government.
AMPLIFIED LOUDSPEAKER CONTROLLERS
Voltera D and D M Series ALCs are recommended for this product.
