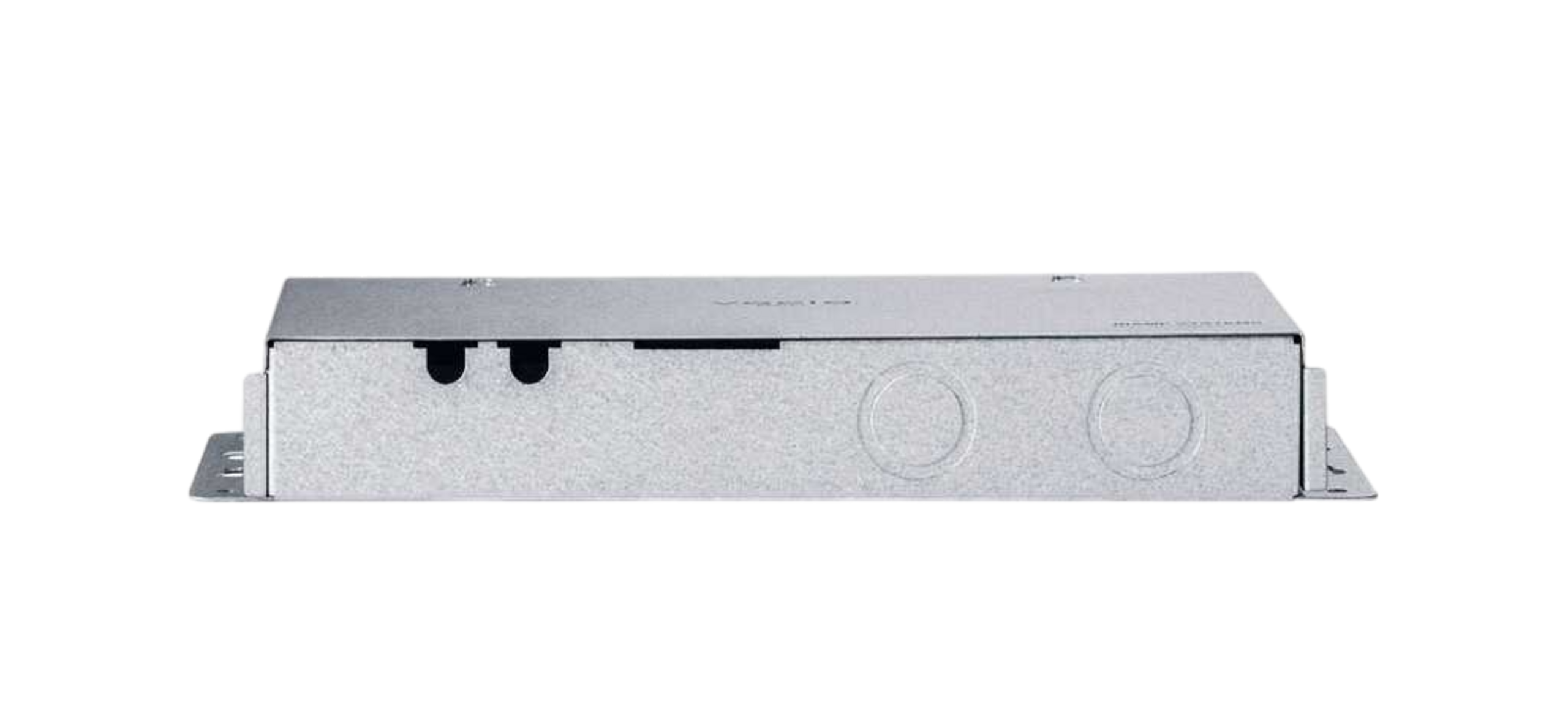

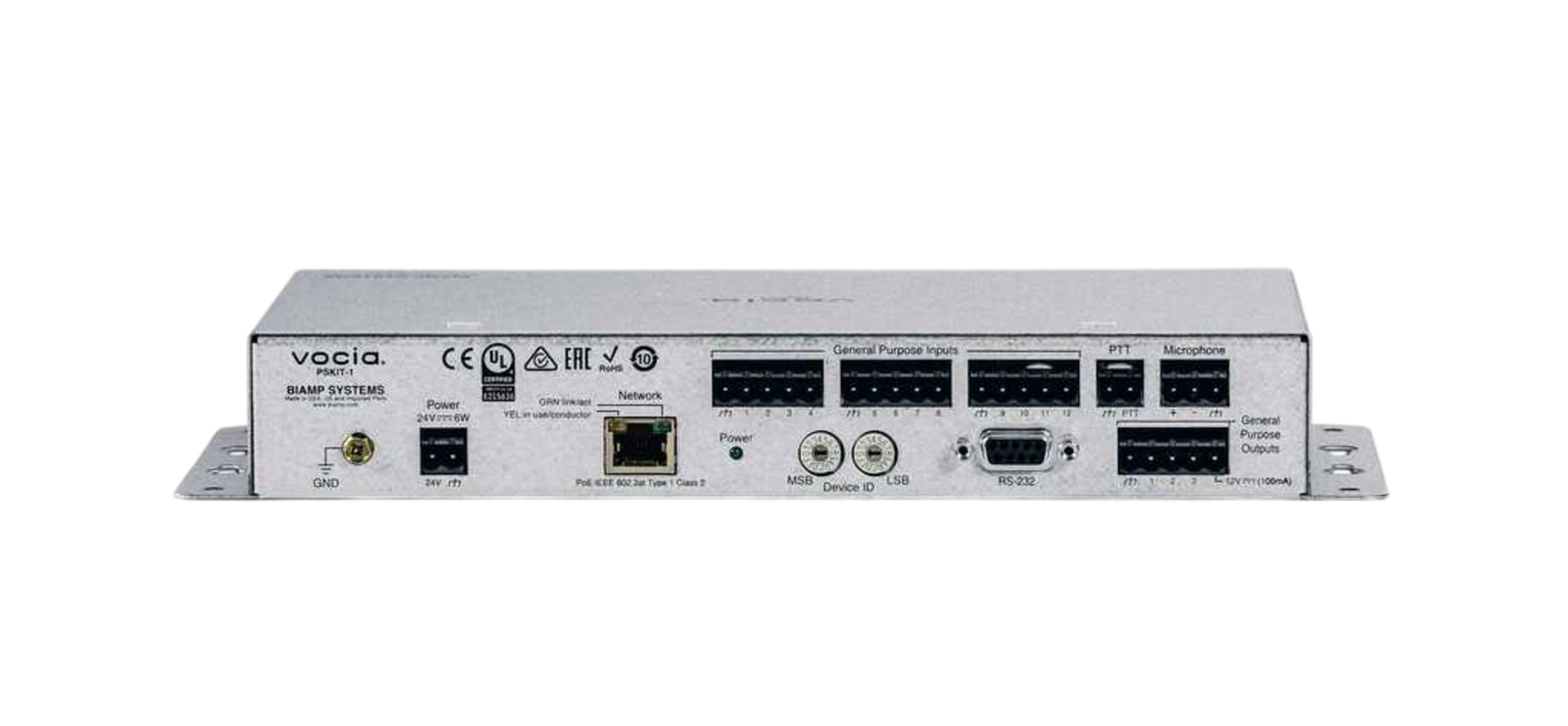

Vocia PSKIT-1
Paging station kit with onboard DSP, memory and up to 999 stored user-configurable page codes.
Paging station kit with onboard DSP, memory and up to 999 stored user-configurable page codes.
Key Features
- Up to 999 user-configurable Page Codes
- Local digital signal processing, including gain, filters, and compressor/limiter
- Local storage of configuration data
- Local storage of default and/or custom preambles
- CobraNet® audio/control, plus power on single cable
- RS-232 control of functionality for third-party control systems
- Eight priority levels: four regular priority levels, four emergency priority levels
- Built-in store and forward functionality
- Microphone and Push-to-Talk (PTT) input
- Dual/Redundant Powering (PoE, 24 volt DC)
- 12 General Purpose Inputs
- Three General Purpose Outputs
- Rotary ID switches for unit identification
- CE marked and RoHS compliant
- 5-year warranty
- Compliant with the US Trade Agreement Act (TAA)
The PSKIT-1 is a standalone paging station kit designed to allow for direct connection to third-party equipment such as firemanâs microphone stations or custom designed fire panels. The PSKIT-1 features embedded DSP and on-board memory to support standard and advanced public address and mass notification functionalities. The PSKIT-1 can access 999 user-configurable page codes. Additionally, all device-specific configuration information is stored locally, which means the PSKIT-1 does not rely on a centralized controller for processing and page routing. Thus, all the processing, routing, and storage functionality in a Vocia system remains decentralized. This eliminates a single point of system failure and permits redundancy to be built directly into the network. As part of a Vocia system, the PSKIT-1 meets paging requirements for facilities of all sizes.
The Vocia PSKIT-1 complies with the United States Trade Agreement Act (TAA), allowing it to be included in GSA Schedule contractorsâ sales bids for the U.S. federal government.
