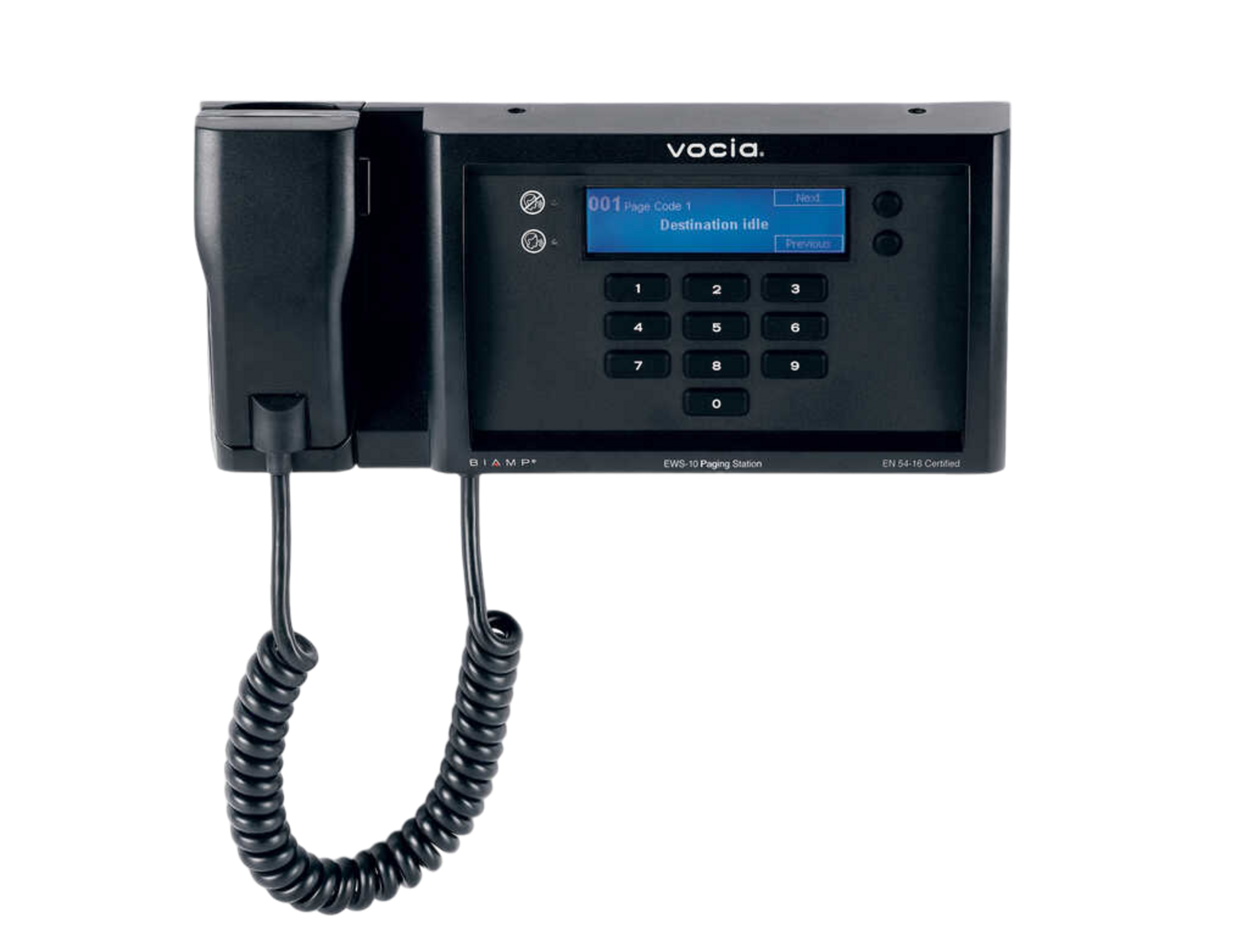

Vocia EWS-10
Vocia emergency wall-mounted paging station, 10 buttons with hand-held microphone (EN 54-16 certified).
Vocia emergency wall-mounted paging station, 10 buttons with hand-held microphone (EN 54-16 certified).
Key Features
- Auxiliary port allows the use of an external 24V compliant power supply for main or redundant power
- Push-to-talk button with status indication
- Up to 999 user-configurable page codes
- Four software-configurable emergency priority paging levels
- Local digital signal processing, including gain, filters, and compressor/limiter
- Local storage of configuration data
- Local storage of default and/or custom preambles
- CobraNet® audio/control with dynamic use of available bundles, plus power over single Ethernet cable
- Built-in store and forward functionality
- Backlit liquid crystal display (LCD) technology
- Optional PIN to restrict unauthorized use
- Auxiliary Port provides connection for power, line-level audio, and bi-directional RS232 for transmitting Vocia Text Protocol (VTP) commands
- High-quality, noise-cancelling handheld microphone
- Power over Ethernet
- Sturdy, surface-mounted component housing
- Rotary ID switches for unit identification
- EN 54-16 certified, EN 60849 & AS 60849 verified, CE marked and RoHS compliant
- 5-year warranty
- Compliant with the US Trade Agreement Act (TAA)
The EWS-10 is the emergency wall-mounted networked paging station certified for use in an EN 54-16 compliant life safety system. It features all the same configurable page codes, memory, and features as the WS-10 paging station.
The EWS-10 is a wall-mounted networked paging station for use in Vocia® systems. The EWS-10 features embedded DSP and on-board memory to support standard and advanced public address functionalities. The EWS-10 can store 999 user-configurable page codes. Additionally, all device-specific configuration information is stored locally, which means the EWS-10 does not rely on a centralized controller for processing and page routing. Thus, the processing, routing and storage functionality in a Vocia system is decentralized, which eliminates any centralized point of failure. As part of the Vocia system, the EWS-10 meets paging requirements for facilities of all sizes.
