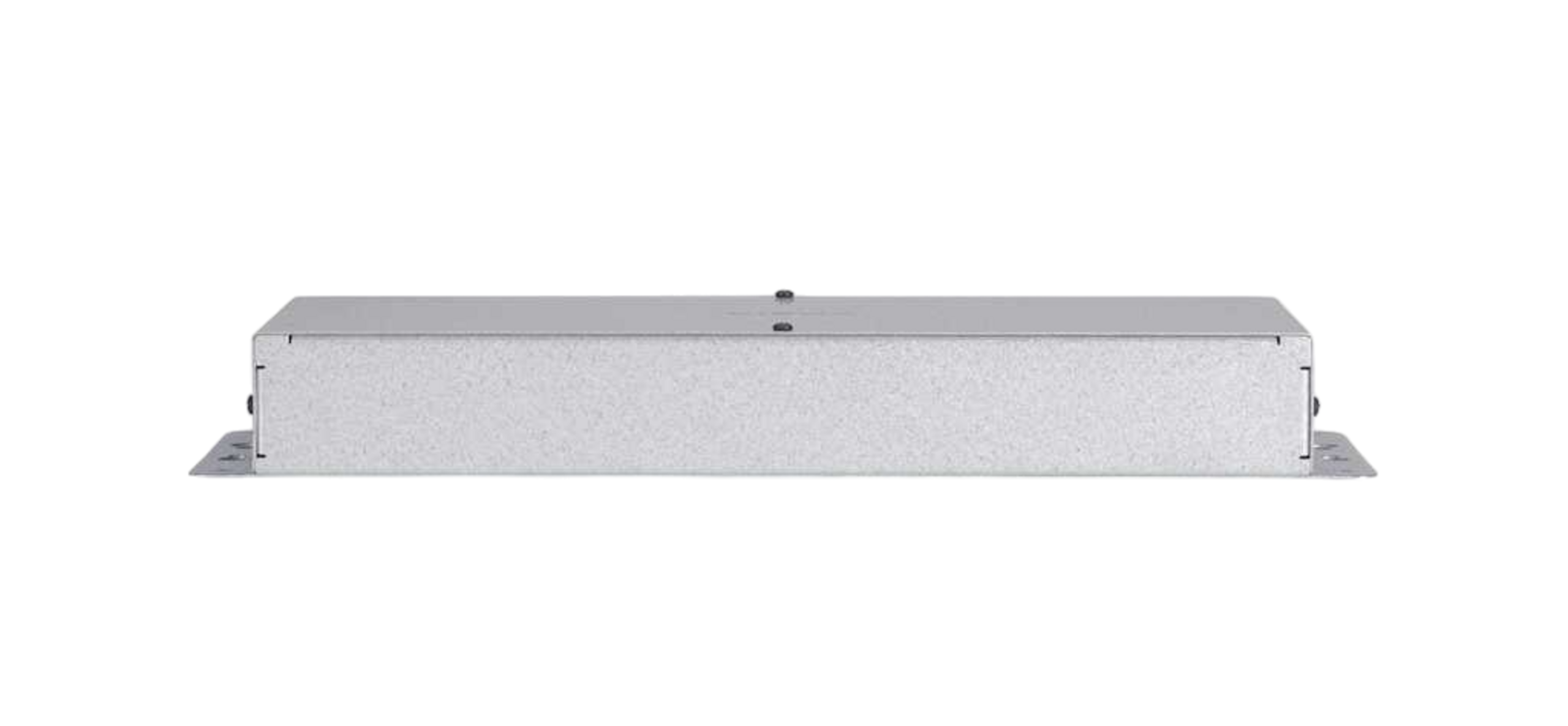

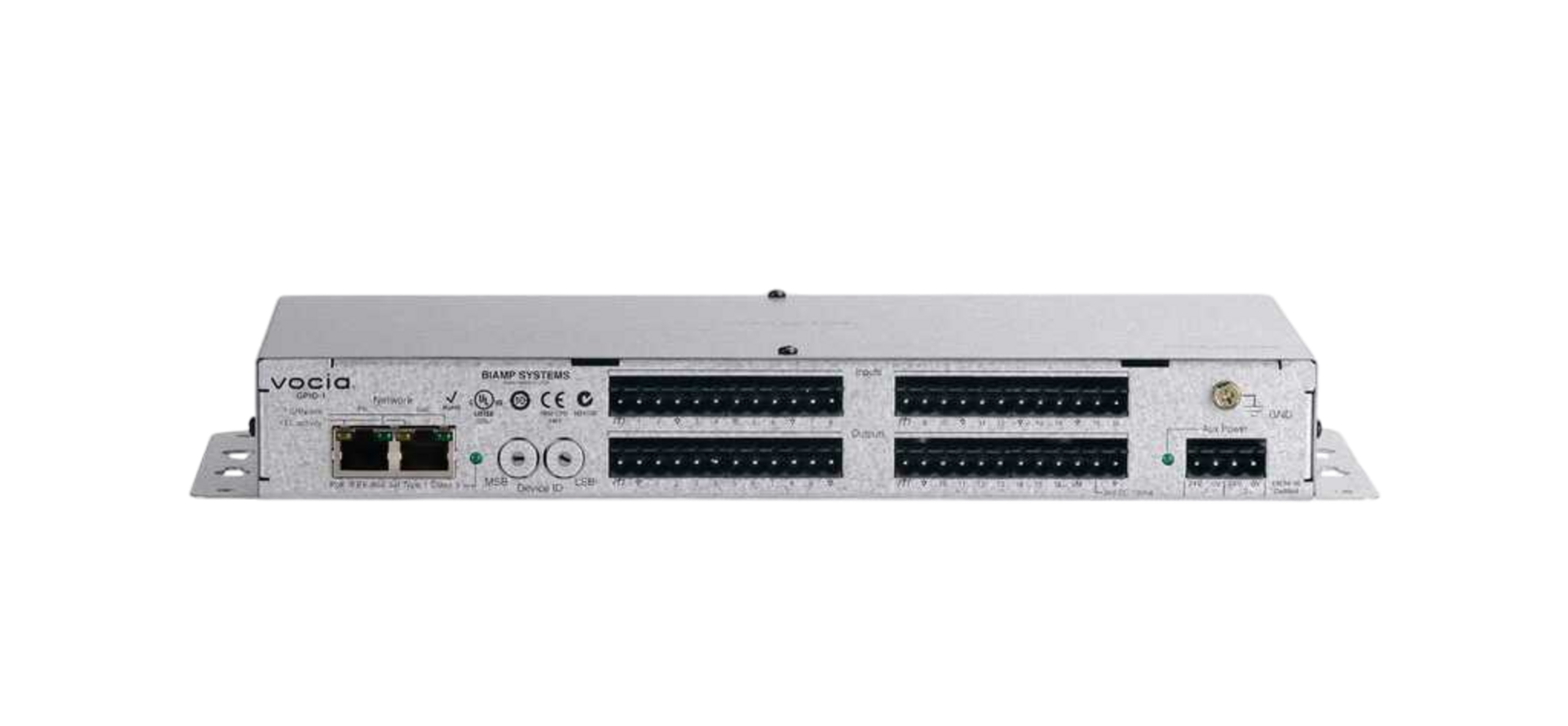

Vocia GPIO-1
General Purpose Input/Output Device. I/O; slave for LSI-16e or for stand-alone logic I/O use (EN54-16 certified).
General Purpose Input/Output Device. I/O; slave for LSI-16e or for stand-alone logic I/O use (EN54-16 certified).
Key Features
- 16 general purpose logic inputs and outputs
- Device monitoring
- Able to be used to directly interface with fire alarm and emergency equipment (EN54-16 certified)
- PoE capable with alternate powering from auxiliary 24 volt DC supply (dual inputs)
- Software-configurable
- Control over a single Ethernet cable
- Dual Ethernet ports for redundancy
- Each general purpose input can be programmed as TTL, high range or monitored high range
- General purpose inputs allow monitoring for short to ground and open circuit
- Rotary switches for device identification
- IP30 Compliant
- CE marked and RoHS compliant
- 5-year warranty
- Compliant with the US Trade Agreement Act (TAA)
The GPIO-1 is a networked device that serves as an extension interface between a Vocia system and emergency or fire alarm systems when used in conjunction with a Vocia® enhanced life safety interface (LSI-16e) or independently for connection to general purpose control systems. The GPIO-1 provides sixteen general purpose inputs and sixteen general purpose outputs to control various aspects of a Vocia system. The GPIO-1 is a monitored device and can be used in life safety applications where more logic inputs or outputs are required. The GPIO-1 has dual powering from PoE Ethernet ports and alternate powering from dual 24V DC inputs. In the event of power loss changeover between power sources will provide uninterrupted operation.
The Vocia GPIO-1 complies with the United States Trade Agreement Act (TAA), allowing it to be included in GSA Schedule contractorsâ sales bids for the U.S. federal government.
