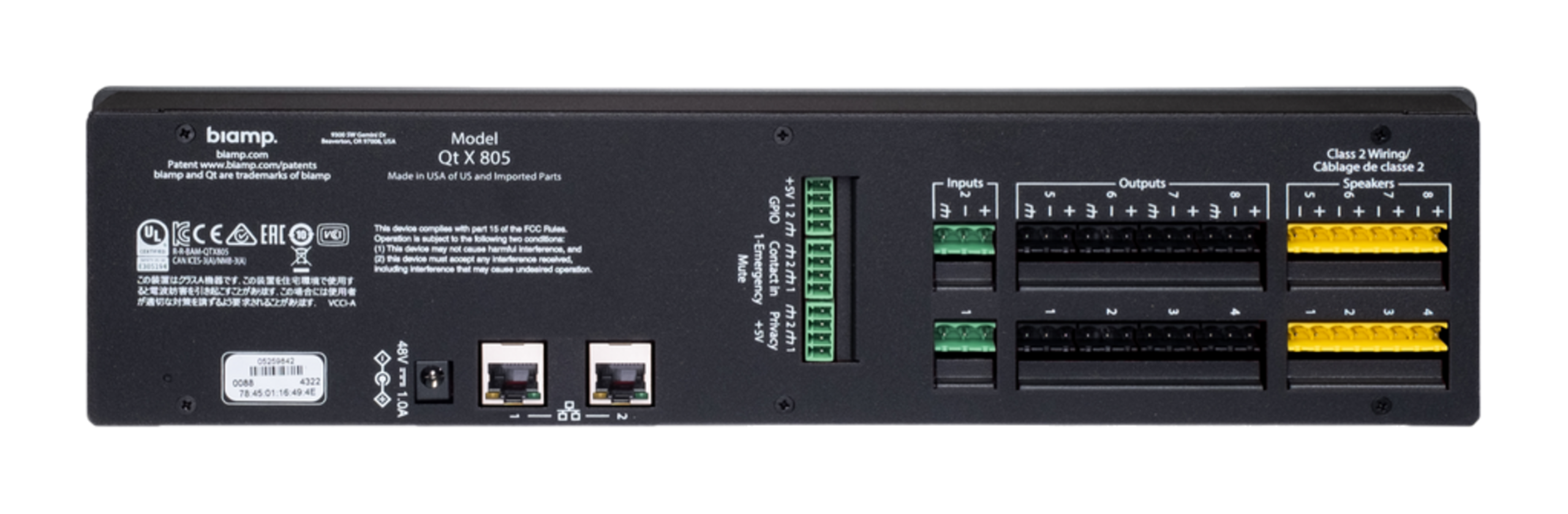

Cambridge Qt X 805D
The Qt X 805D control module is a rack mountable, 8-zone sound masking generator, controller, band equalizer and amplifier, supporting AVB and Dante media networks.
The Qt X 805D control module is a rack mountable, 8-zone sound masking generator, controller, band equalizer and amplifier, supporting AVB and Dante media networks.
Key Features
- Utilizes indirect 4Ω and 8Ω speakers (ex. DS1357 & DS1398) and/or direct active emitters (DS1320) DynasoundPro™ loudspeakers and emitters
- Supports up to eight zones of amplified speakers matched with eight zones of pre-amp outputs
- Eight included non-correlated sound masking audio sources (one for each output)
- AVB or Dante media network
- Two audio inputs for paging and music
- Contact closure integrates with fire alarm systems
- Front panel with LCD
- Panel lock via software control
- Rack mount bracket included, optional wall mount bracket also available
- Auto ramping
- Event scheduling
- Adjustable equalizer for masking and audio inputs
- Met Works with WELL licensing criteria for sound masking.
- 5-year warranty
- Compliant with the US Trade Agreement Act (TAA)
The Qt X 805D control module is a rack mountable, 8-zone sound masking generator, controller, band equalizer and amplifier, supporting AVB and Dante media networks, with two auxiliary audio inputs allowing for audio distribution from paging controllers and/or (background) music players.
The Qt X 805D controls sound masking speakers/emitters in both direct-field and indirect installationsâor a mix of both, and features 16 separate outputs: Eight amplified 8 ohm channels and 8 simultaneous line level channels. Each of the eight amplified output speakers/emitters can be independently adjusted for masking and auxiliary audio levels and spectra.
When multiple Qt X controllers are included in a single system, audio inputs can be shared across all controllers via AVB (and Dante with the 805D).
Learn more about sound masking here.
The Qt X 805 & Qt X 805D comply with the United States Trade Agreement Act (TAA), allowing it to be included in GSA Schedule contractorsâ sales bids for the U.S. federal government.
