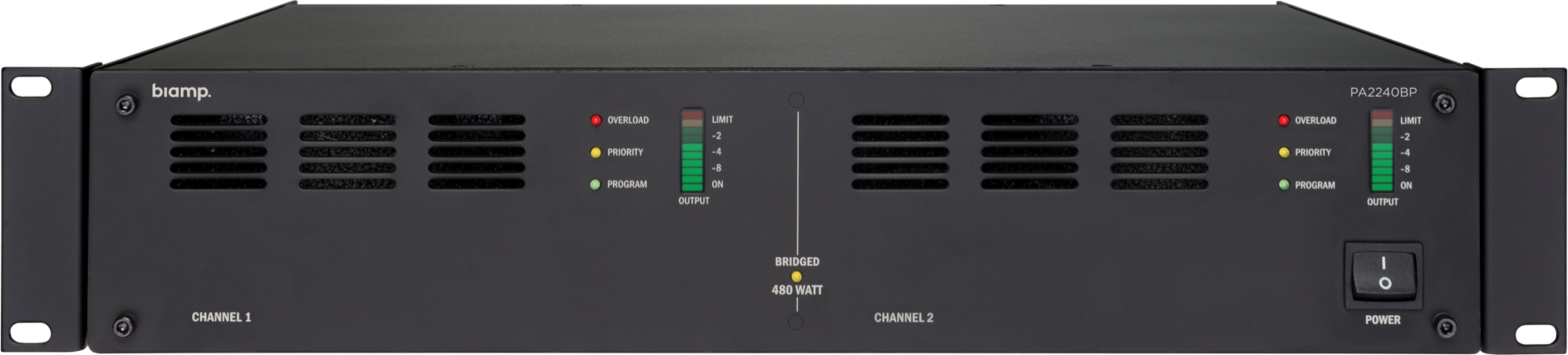

Commercial Audio PA2240BP
2-channel, 100V power amplifier, 2 x 240W bridgeable into 1 x 480W with program and priority input per channel, 24V priority output, tone control, 230V AC – 24V DC.
2-channel, 100V power amplifier, 2 x 240W bridgeable into 1 x 480W with program and priority input per channel, 24V priority output, tone control, 230V AC – 24V DC.
Key Features
- 2 channels, 25W per channel
- Bridgeable channels
- Class D amplifier topology
- Supports 4Ω and 8Ω outputs
- 4 GPIO for control of relays, switches, and sensors
- 3 band equalizer for bass, mid and treble control
- Auto standby mode
- 5-year warranty
- Not available in U.S. and Canada
The PA2240BP is a bridgeable and ultra-reliable 2-channel 100V power amplifier that can be used in all your big 100V projects. It can be configured as a 2-channel amplifier (2 x 240W) or it can be bridged into a 1 x 480W power amplifier if you need to power a big group of loudspeakers up to 480W.
Both channels have a program and priority input with independent bass and treble tone control that guarantees an excellent sound experience, even in tough acoustical conditions. The emergency priority input can be activated by contact closure to override the program or music input.
The PA2240BP operates on 230V AC and 24V DC, what makes him excel other power amplifiers. In this way the unit can easily be used in evacuation systems compliant to the EN60849 regulation. As all the controls of the PA2240BP are located at the back panel, changes of the amplifier’s settings by unauthorised or unqualified people will most likely be prevented.
