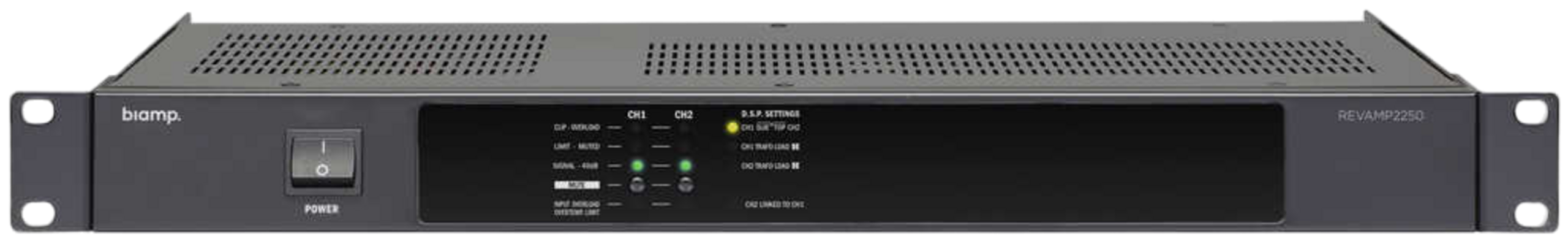

Commercial Audio REVAMP2250
2-channel, class D amplifier, 2 x 250W.
2-channel, class D amplifier, 2 x 250W.
Key Features
- 2 Channel class D amplifier
- 2 x 250 Watts (RMS @ 4 Ohms)
- 2 x 350 Watts (Dynamic @ 4 Ohms)
- In bridge mode 1 x 500 Watts (RMS @ 8 Ohms)
- Convection cooled
- 1 U, 19-inch rackmount
- 5-year warranty
- Not available in U.S. and Canada
The REVAMP2250 is a professional two-channel digital power amplifier with 2×350 watts output power @4 ohms, but is also bridgeable (1×700 watts @8 ohms).
The unit incorporates a highly efficient SMPS power supply and outputs with efficient Class-D output topology. The digital signal processor inside operates with one simple push button at the back of the unit to select an operating mode (six presets). An example of a preset is the combination CH1 subwoofer and CH2 trafo load. In this example you have a low-pass filter for increased stability when using 100 volt transformers on the output, allowing you to use 100 volt speakers as top speakers combined with a standard low impedance subwoofer. With the other presets, channels can be bridged and high pass filters can be applied to a channel. Ease of use, high-tech, reliability and big output power has never been as cleverly combined as in this REVAMP2250 amplifier.
