Tesira EIC-4
4-channel mic/line input card for the EX-MOD.
4-channel mic/line input card for the EX-MOD.
Key Features
- Four channels of balanced microphone or line level input
- Plug-in barrier strip connectors
- 0 – 66 dB gain, adjustable in 6 dB increments
- Clip indicator
- +48 volts Phantom Power
- -100 dB to +12 dB fader range for level
- Signal invert for reverse polarity
- RoHS compliant and AES grounded
- 5-year warranty
- Compliant with the US Trade Agreement Act (TAA)

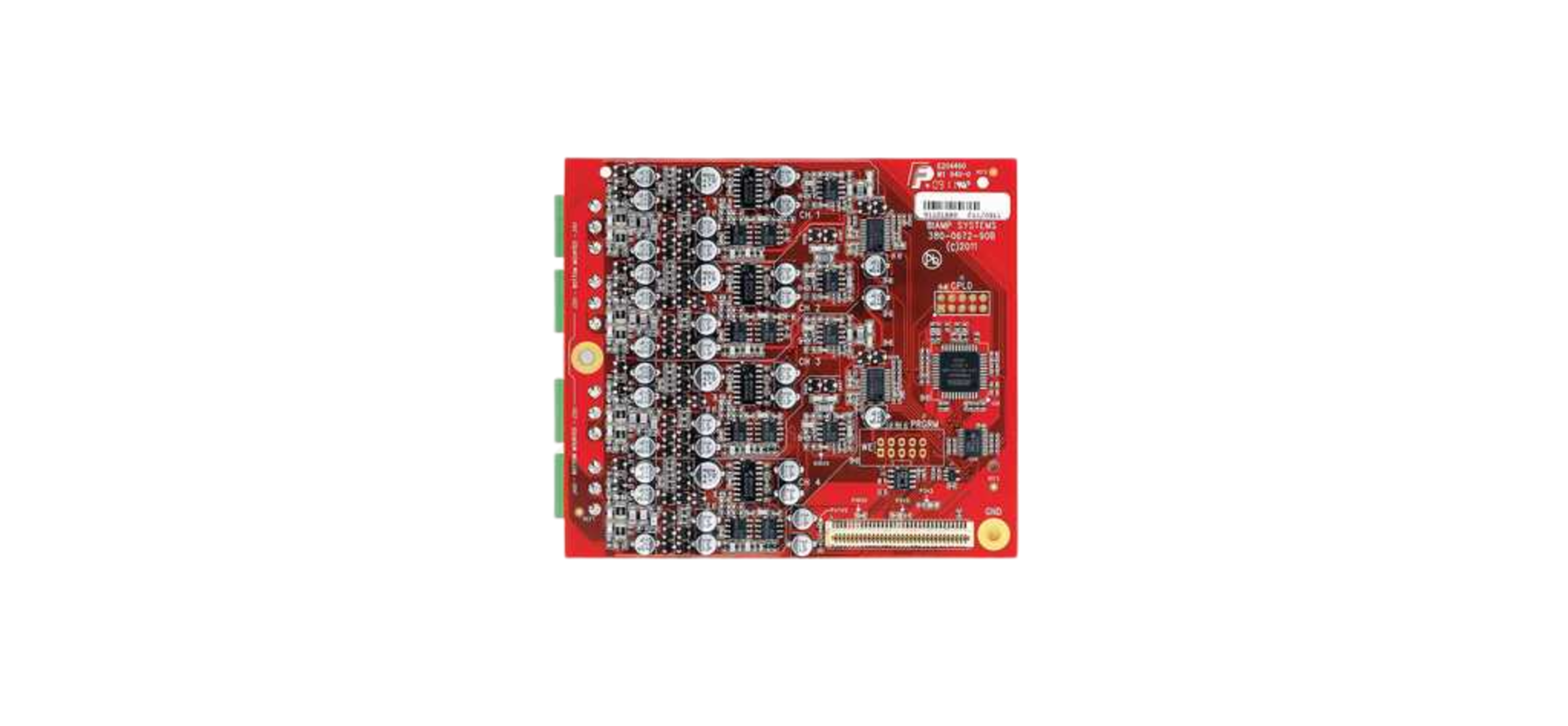

The Tesira EIC-4 expander card is an optional card that can be installed in the Tesira EX-MOD and all Tesira amplifiers. Each EIC-4 provides four channels of mic or line level audio input. The inputs are electrically balanced and provided on plug-in barrier strip connectors. Software control of each input includes gain with clip indicator, +48V phantom power, mute, level, and signal invert.
The Tesira EIC-4 & Tesira EIC-4 CK comply with the United States Trade Agreement Act (TAA), allowing it to be included in GSA Schedule contractorsâ sales bids for the U.S. federal government.
