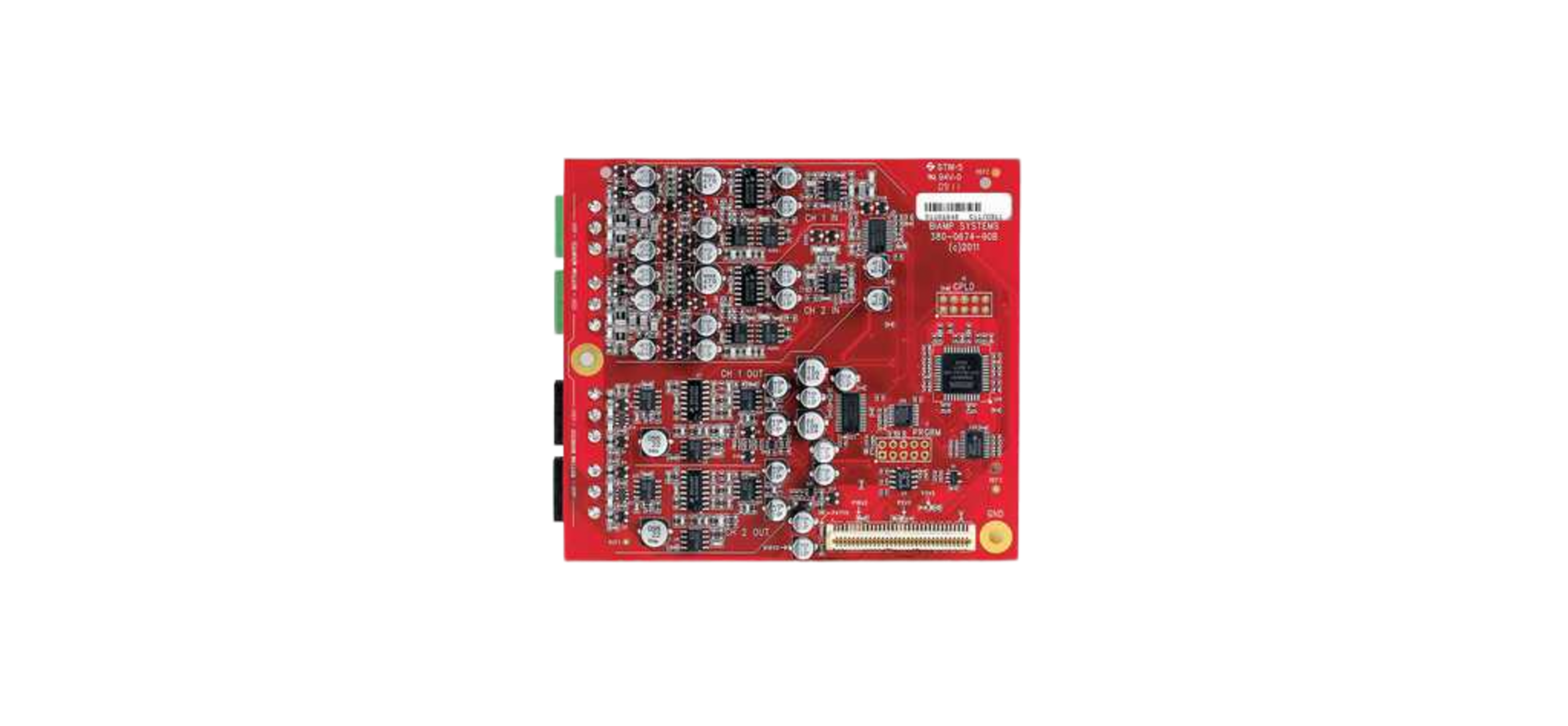

Tesira EIOC-4 Card Kit
Tesira 2 channel mic/line input & 2 channel mic/line output card kit for the EX-MOD.
Tesira 2 channel mic/line input & 2 channel mic/line output card kit for the EX-MOD.
Key Features
- Two channels of balanced microphone or line level input
- Two channels of balanced microphone or line level output
- 0 – 66 dB gain, adjustable in 6 dB increments and inputs
- +48 volts Phantom Power on inputs
- Selectable full scale output reference level (24 dBu, 18 dBu, 12 dBu, 6 dBu, 0 dBu, -31 dBu) for best interface/performance
- RoHS compliant and AES grounded
- 5-year warranty
- Compliant with the US Trade Agreement Act (TAA)
The Tesira EIOC-4 expander card is an optional card that can be installed in the Tesira EX-MOD and all Tesira amplifiers. Each EIOC-4 provides two channels of mic or line level audio input and two channels of mic or line level audio output. The inputs and outputs are electrically balanced and provided on plug-in barrier strip connectors. Software control of each input includes gain with clip indicator, +48V phantom power, mute, level, and signal invert; whereas control for each output includes mute, level, signal invert, and full-scale output reference.
The Tesira EIOC-4 & Tesira EIOC-4 CK comply with the United States Trade Agreement Act (TAA), allowing it to be included in GSA Schedule contractorsâ sales bids for the U.S. federal government.
