TesiraCONNECT TC-5
5-port expansion device that serves as the central connection point for all Biamp devices in a conference room.
5-port expansion device that serves as the central connection point for all Biamp devices in a conference room.
Key Features
- Five 1 Gbps RJ-45 ports
- Four ports support PoE+ power (IEEE 802.3at Class 4, 30 watts)
- Up to four TesiraCONNECT TC-5 devices can be daisy-chained together

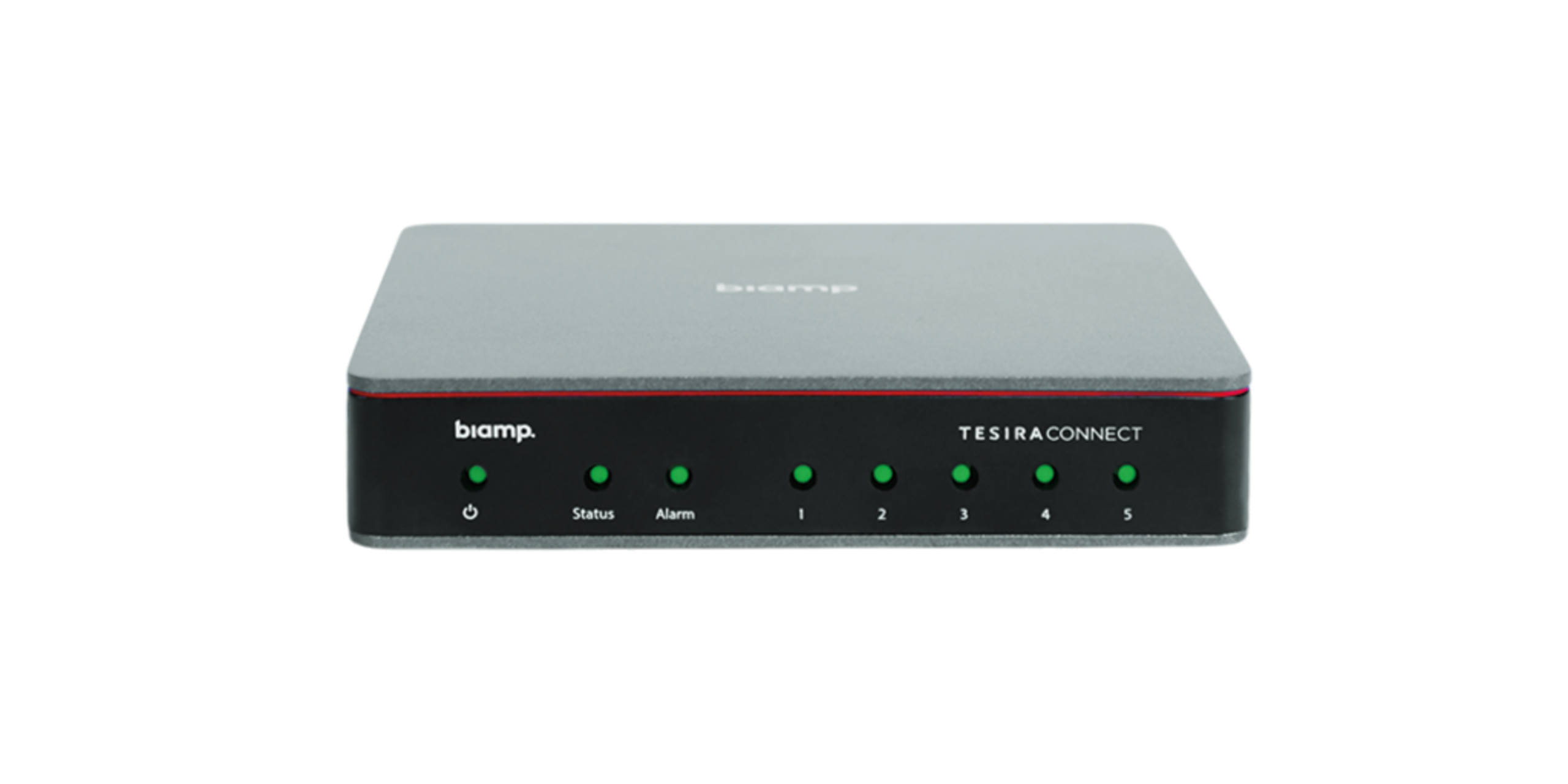

- Front panel LEDs indicate port connections, device status, and fault conditions
- Fault reporting and device monitoring supported in SageVue
- Out-of-the-box compatibility with Tesira conferencing products
- External universal power supply
- CE marked, UL listed, and RoHS compliant
- 5-year warranty
- Compliant with the US Trade Agreement Act (TAA)
- Biamp Workplace Ready

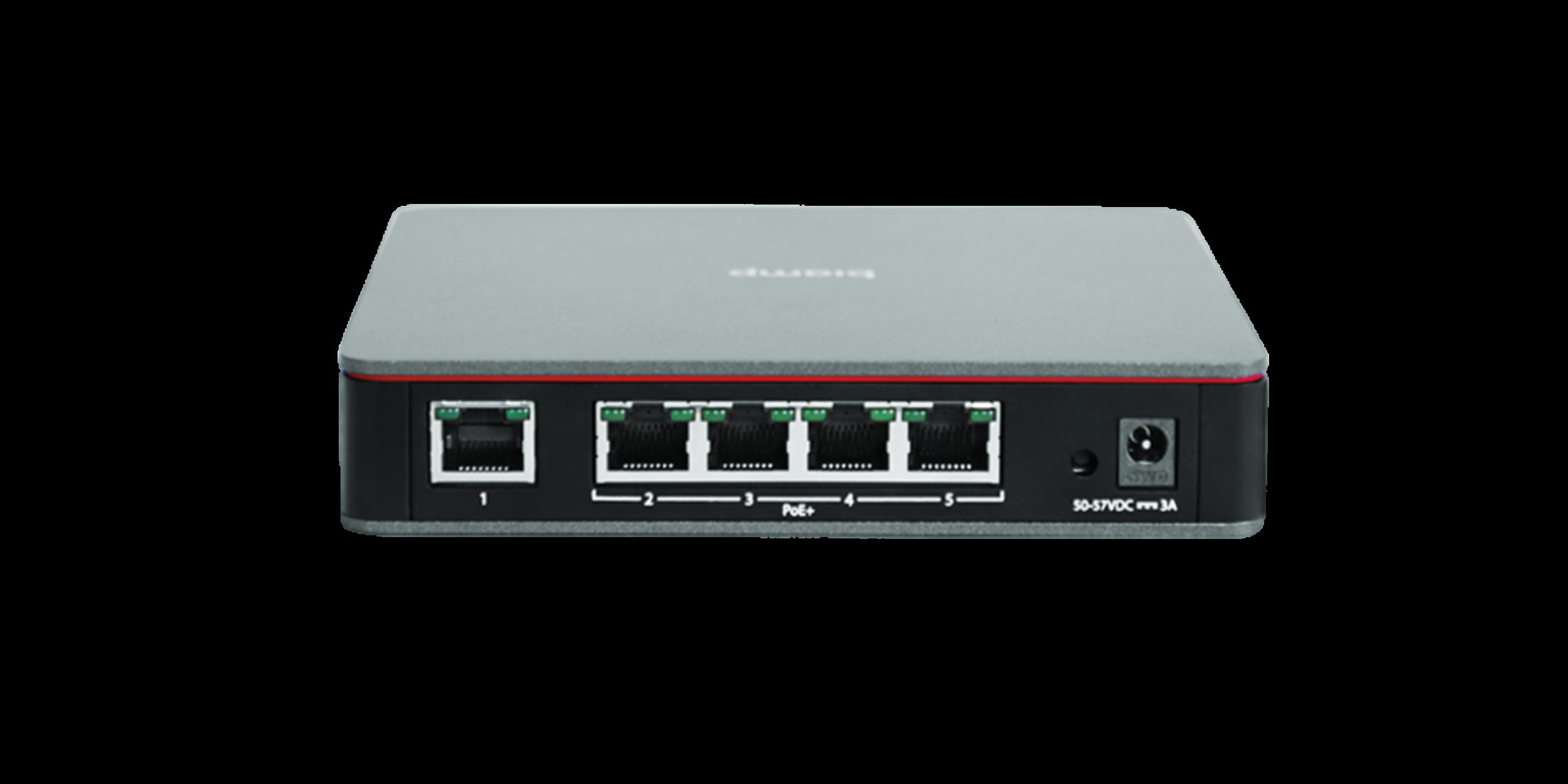

TesiraCONNECT TC-5 serves as the central connection point for all Biamp devices in a conference room. It simplifies conferencing installations by providing power and media over a single category cable between devices such as Tesira AVB DSPs, USB extenders, PoE+ amplifiers, and microphones. Four of the five Gigabit RJ-45 ports provide PoE+ power (IEEE 802.3at Class 4, 30W) to connected endpoints, while the remaining RJ-45 port is used for DSP connection or daisy-chaining TesiraCONNECT TC-5 devices together.
TesiraCONNECT TC-5 eliminates the need for third-party switches; it works out-of-the-box with Tesira products and does not require any device configuration. The small form factor allows it to be easily mounted to a wall or under a table, or placed above the ceiling or inside a credenza in the conference room.
The TesiraCONNECT TC-5 complies with the United States Trade Agreement Act (TAA), allowing it to be included in GSA Schedule contractorsâ sales bids for the U.S. federal government.
