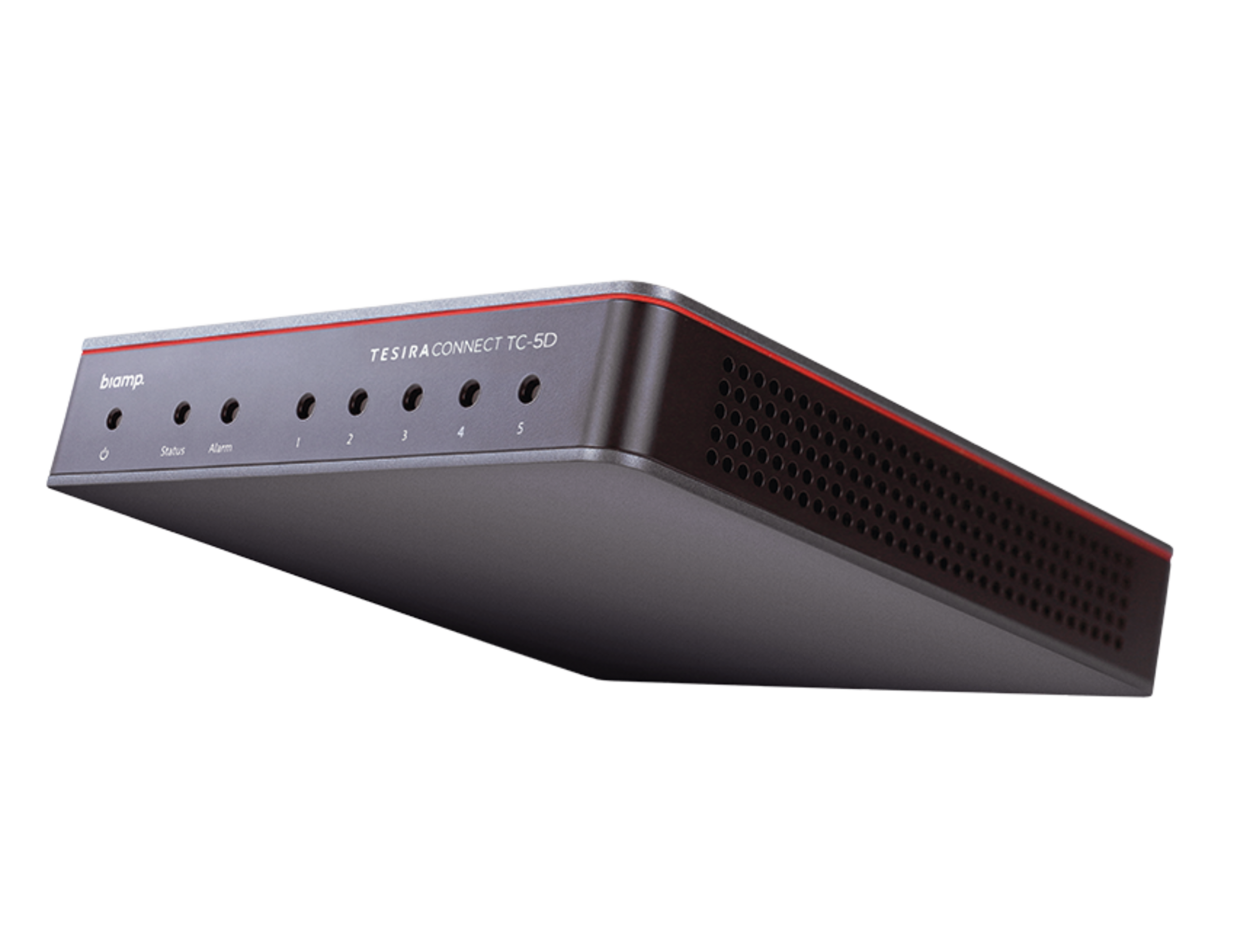

TesiraCONNECT TC-5D
5-port expansion device with AVB-to-Dante bridging that serves as the central connection point for all Biamp and Dante devices in a conference room.
5-port expansion device with AVB-to-Dante bridging that serves as the central connection point for all Biamp and Dante devices in a conference room.
Key Features
- Five 1 Gbps RJ-45 ports
- Four ports support PoE+ power (IEEE 802.3at Class 4, 30 watts)
- Up to four TesiraCONNECT devices can be daisy-chained together
- Supports up to 32×32 channels of Dante audio
- Auto-detects media network on each port
- Front panel LEDs indicate port connections, device status, and fault conditions
- Supports Dante Domain Manager
- Dante routing configured in Dante Controller
- Out-of-the-box compatibility with Biamp AVB products and Dante products
- Fault reporting and device monitoring supported in SageVue
- External universal power supply
- CE marked, UL listed, and RoHS compliant
- 5-year warranty
- Compliant with the US Trade Agreement Act (TAA)
- Biamp Workplace Ready
The TesiraCONNECT TC-5D serves as the central connection point for all Biamp and Dante devices in a conference room. It simplifies installations by providing power and media over a single category cable between devices such as Tesira AVB DSPs, USB extenders, PoE+ amplifiers and microphones as well as 3rd party Dante devices. Four of the five Gigabit RJ-45 ports provide PoE+ power (IEEE 802.3at Class 4, 30W) to connected endpoints, while the remaining RJ-45 port is used for DSP connection or daisy-chaining TesiraCONNECT devices together.
The TC-5D eliminates the need for third-party switches; it works out-of-the box with Tesira and Dante products and does not require any device configuration. The small form factor allows it to be easily mounted to a wall or under a table, or placed above the ceiling or inside a credenza in the conference room.
The TesiraCONNECT TC-5D complies with the United States Trade Agreement Act (TAA), allowing it to be included in GSA Schedule contractorsâ sales bids for the U.S. federal government.
