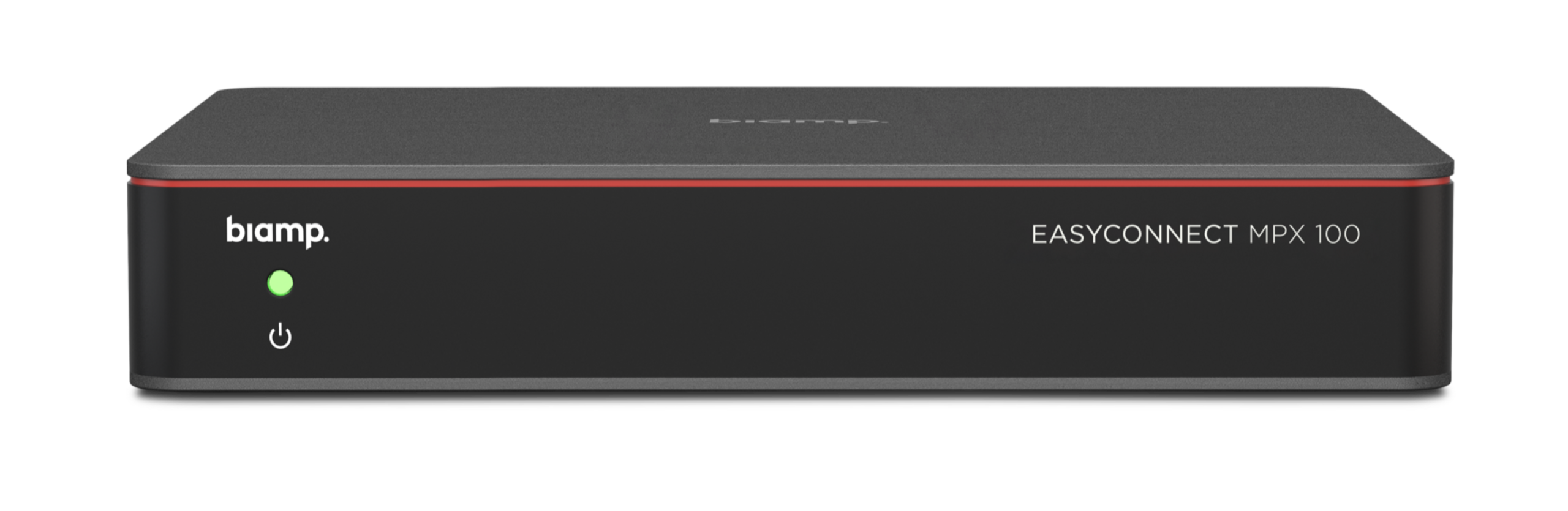

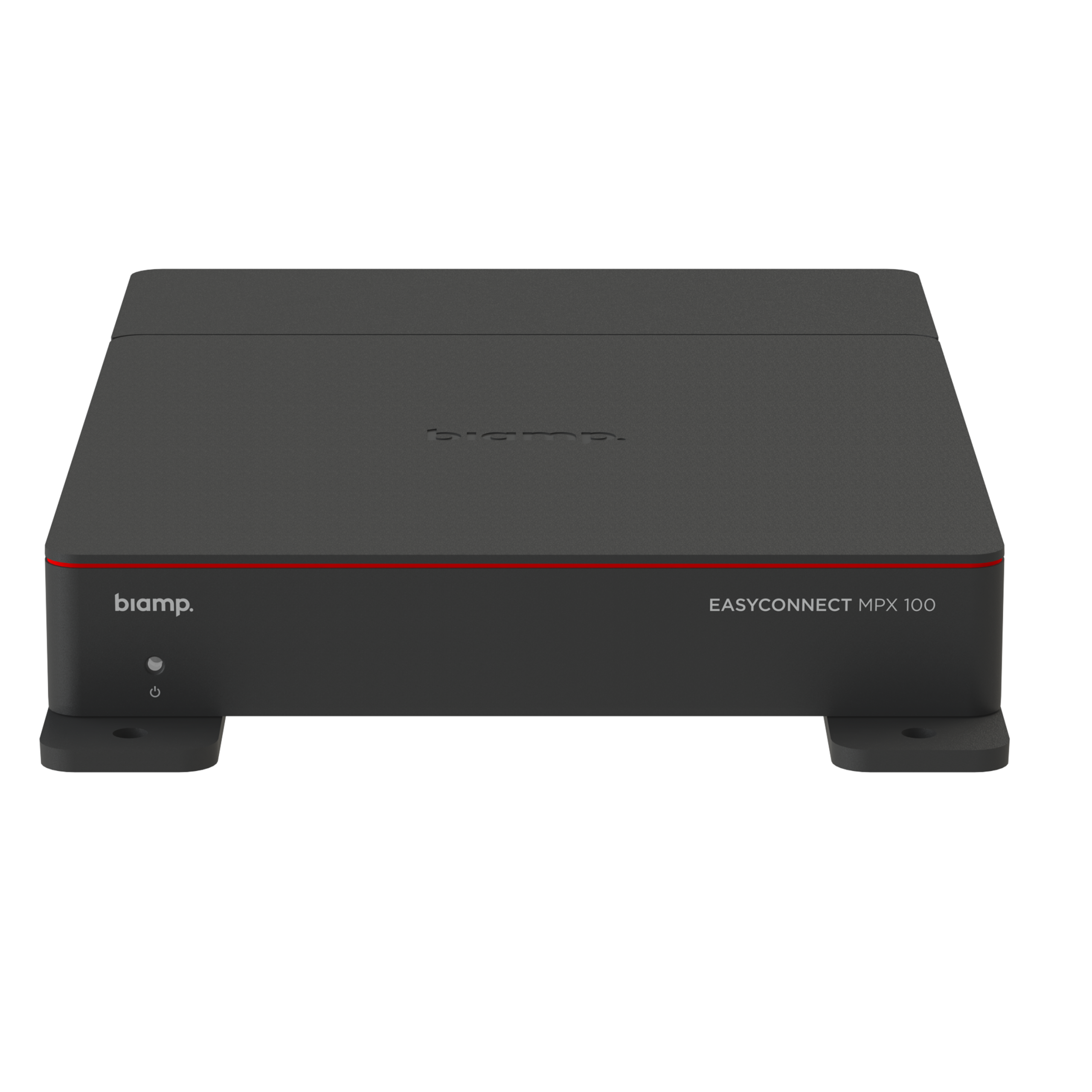

EasyConnect MPX 100
BYOM AV switching device and port expander.
BYOM AV switching device and port expander.
Key Features
- Easily adds BYOM calls to UC rooms
- Simple/frictionless switching of room display and USB peripherals between dedicated UC Platform and BYOM laptop
- USB and HDMI connectivity with no drivers required
- Mounts behind the display and includes cables that run to the table
- SageVue or web based monitoring/administration of EasyConnect MPX 100 and room peripherals
- Provides passthrough to other Biamp AV solutions
- Provides power and updates for the Parlé bar (USB-C port)
- Allows firmware updates on connected Biamp devices
- Adds USB Ports to expand the room configuration, for cameras, microphones, or touchscreens
- HDMI 2.0 for displays up to 4K resolution
- Supports Windows and macOS laptops
- 5-year warranty
- Compliant with the US Trade Agreement Act (TAA)
The EasyConnect MPX 100 effortlessly adds BYOM calls to UC rooms. The MPX 100 is an easy-to-use AV Switcher for BYOM designed for conference rooms equipped with a dedicated UC room system, such as Microsoft Teams Rooms or Zoom Rooms, but from which a user occasionally needs to use an alternate UC platform. When a user needs to use an alternate UC platform, they simply connect a laptop to the MPX 100 via a USB and HDMI cable pair, and it will automatically switch away from the primary UC compute and connect the BYOM laptop to the in-room AV peripherals. As soon as the user disconnects the USB and HDMI cable pair, the MPX 100 switches the room peripherals back to the dedicated UC room compute.
EasyConnect MPX 100 provides simple connectivity with no drivers required. The MPX 100 is SageVue compatible, offers passthrough to other Biamp AV solutions, and enables firmware updates on connected devices. The MPX 100 also includes extra USB ports for cameras, microphones, or touchscreens; HDMI 2.0 for displays up to 4K resolution; and up to 4K camera support.
