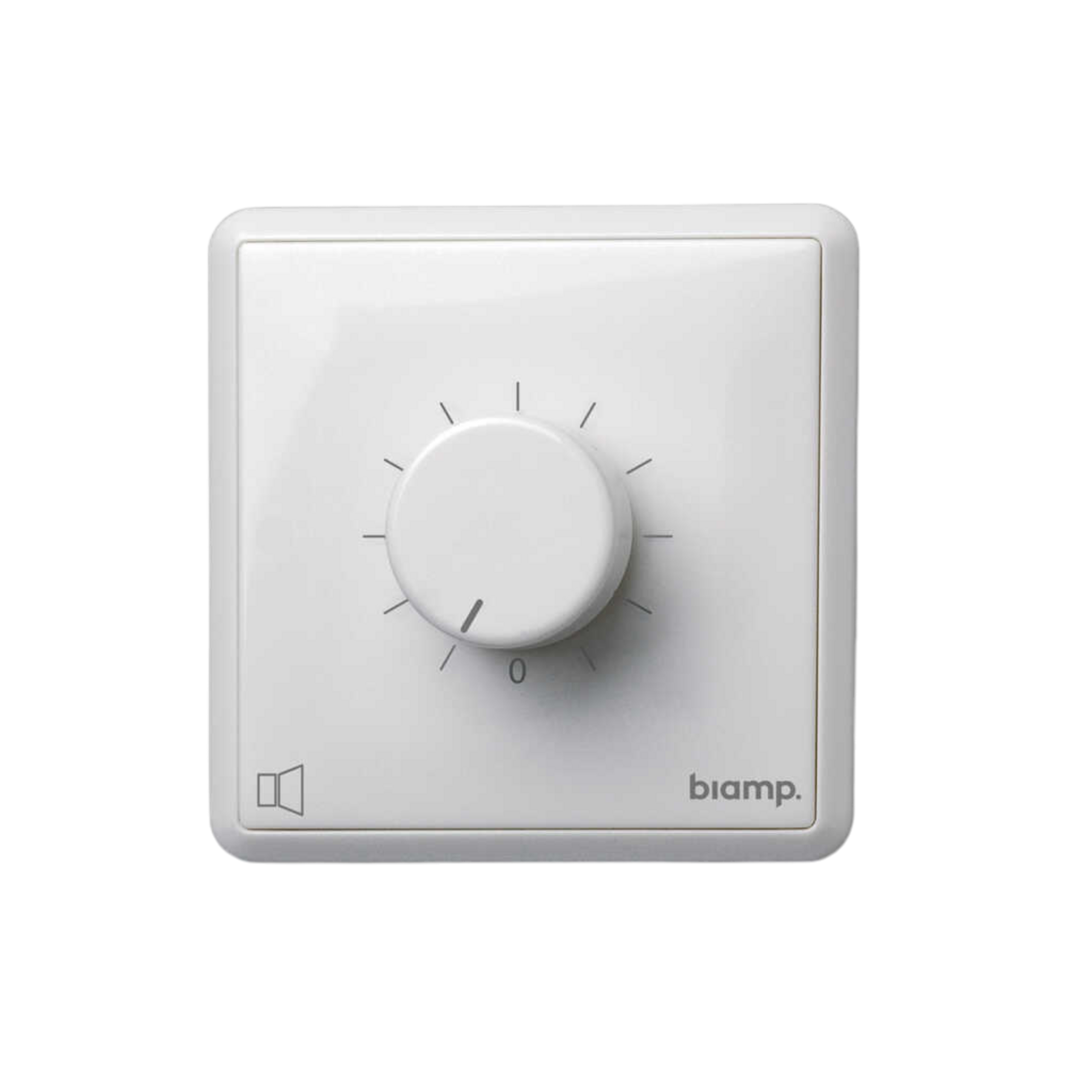

Biamp Commercial Audio E-VOL120 100V, 120W, Euro volume control with 24V priority relay, white

Login to see prices

Key Features

100Volt, 120 Watts, Euro volume control
Allows 24V signals to pass when the controller is in ‘OFF’ position
Built on a universal chassis that flush mounts
Integrates with Gira, Jung and Euro
5-year warranty
Not available in U.S. and Canada

Get a Quote

Add to compare

Add to wishlist

Shipping & Delivery

Courier delivery

Our courier will deliver to the specified address

2-3 Days

From $20

DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

From $40

Warranty 1 year

More details

Free 30-Day returns

More details

Specification

Overview

Audio	Mono, Euro 100 volt volume controller Applicable 100V: Yes Steps: 0 + 11 Max. cable: 2.5 mm Applicable low impedance: No 24volt priority relays: Yes
Height	80 mm
Weight	0.40 kg
Mounting	Screw
Width	80 mm
Depth	50 mm

Processor

Audio	Mono, Euro 100 volt volume controller Applicable 100V: Yes Steps: 0 + 11 Max. cable: 2.5 mm Applicable low impedance: No 24volt priority relays: Yes
Height	80 mm
Weight	0.40 kg
Mounting	Screw
Width	80 mm
Depth	50 mm

Display

Audio	Mono, Euro 100 volt volume controller Applicable 100V: Yes Steps: 0 + 11 Max. cable: 2.5 mm Applicable low impedance: No 24volt priority relays: Yes
Height	80 mm
Weight	0.40 kg
Mounting	Screw
Width	80 mm
Depth	50 mm

RAM

Audio	Mono, Euro 100 volt volume controller Applicable 100V: Yes Steps: 0 + 11 Max. cable: 2.5 mm Applicable low impedance: No 24volt priority relays: Yes
Height	80 mm
Weight	0.40 kg
Mounting	Screw
Width	80 mm
Depth	50 mm

Storage

Audio	Mono, Euro 100 volt volume controller Applicable 100V: Yes Steps: 0 + 11 Max. cable: 2.5 mm Applicable low impedance: No 24volt priority relays: Yes
Height	80 mm
Weight	0.40 kg
Mounting	Screw
Width	80 mm
Depth	50 mm

Video Card

Audio	Mono, Euro 100 volt volume controller Applicable 100V: Yes Steps: 0 + 11 Max. cable: 2.5 mm Applicable low impedance: No 24volt priority relays: Yes
Height	80 mm
Weight	0.40 kg
Mounting	Screw
Width	80 mm
Depth	50 mm

Connectivity

Audio	Mono, Euro 100 volt volume controller Applicable 100V: Yes Steps: 0 + 11 Max. cable: 2.5 mm Applicable low impedance: No 24volt priority relays: Yes
Height	80 mm
Weight	0.40 kg
Mounting	Screw
Width	80 mm
Depth	50 mm

Features

Audio	Mono, Euro 100 volt volume controller Applicable 100V: Yes Steps: 0 + 11 Max. cable: 2.5 mm Applicable low impedance: No 24volt priority relays: Yes
Height	80 mm
Weight	0.40 kg
Mounting	Screw
Width	80 mm
Depth	50 mm

Battery

Audio	Mono, Euro 100 volt volume controller Applicable 100V: Yes Steps: 0 + 11 Max. cable: 2.5 mm Applicable low impedance: No 24volt priority relays: Yes
Height	80 mm
Weight	0.40 kg
Mounting	Screw
Width	80 mm
Depth	50 mm

General

Audio	Mono, Euro 100 volt volume controller Applicable 100V: Yes Steps: 0 + 11 Max. cable: 2.5 mm Applicable low impedance: No 24volt priority relays: Yes
Height	80 mm
Weight	0.40 kg
Mounting	Screw
Width	80 mm
Depth	50 mm

Description

Commercial Audio E-VOL120

100V, 120W, Euro volume control with 24V priority relay, white.

Key Features

100Volt, 120 Watts, Euro volume control
Allows 24V signals to pass when the controller is in ‘OFF’ position
Built on a universal chassis that flush mounts
Integrates with Gira, Jung and Euro
5-year warranty
Not available in U.S. and Canada

Get a Quote

The E-VOL120 is a 100 volt volume control that can handle up to 120 watts of power. It is very versatile thanks to the step-by-step attenuation in 11 steps + zero position. The E-VOL 120 is designed to handle 24V priority signals. This means that you can always get an announcement out, even to zones where the local volume control is in the âOFFâ position!

If your amplifier has a 24V priority output, it will send a 24V signal when you push the talk button on the microphone.

The 24V signal will close a relay on the E-VOL120 volume control, and the signal will pass, even when the volume control is in the âOFFâ position. This can be very useful for emergency or evacuation messages. The E-VOL120 is built on a universal chassis that easily can be integrated with Gira, Jung and Euro.
