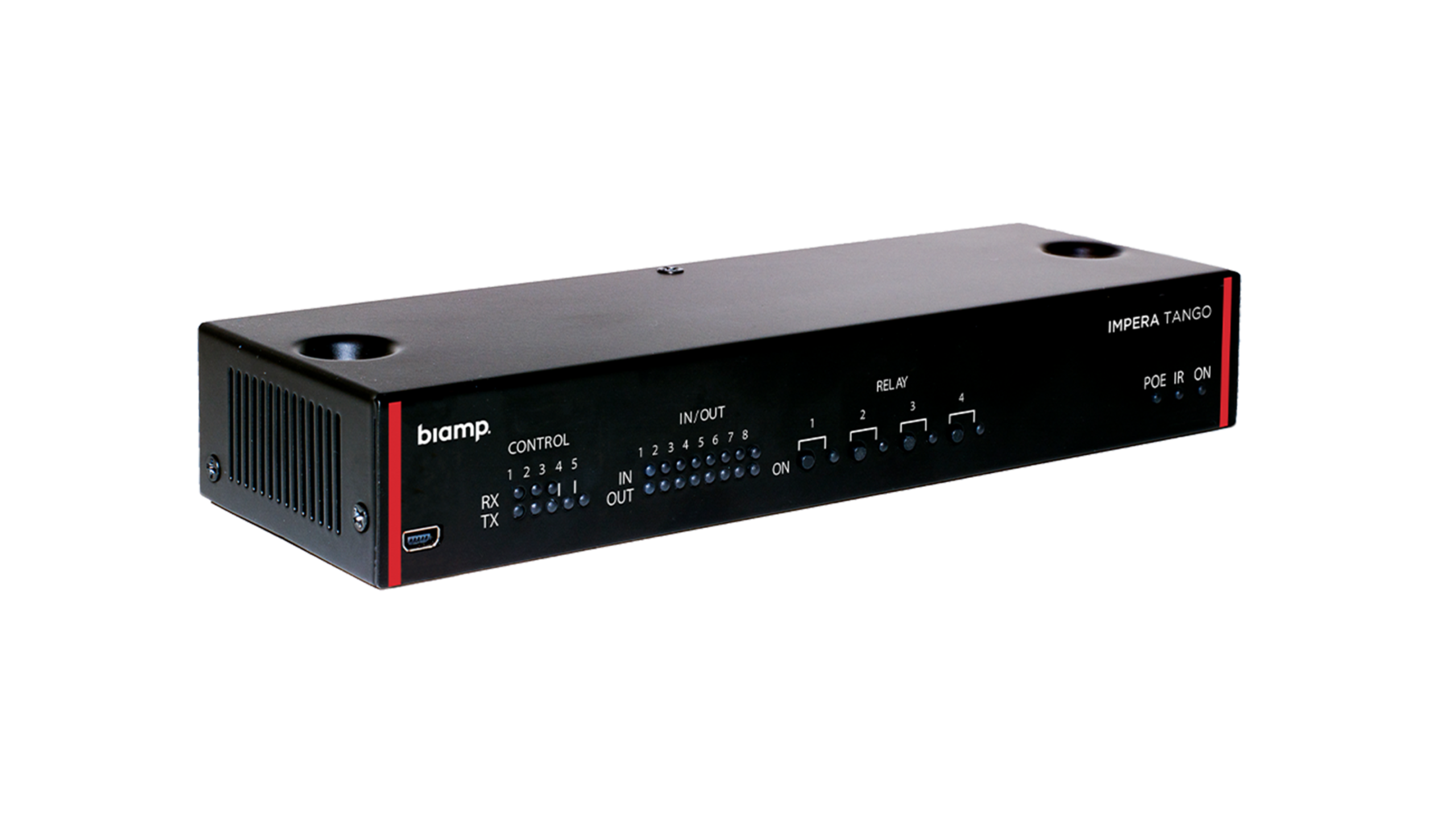

Impera Tango
Touch panel controller with 3 bidirectional RS-232 ports, 2 unidirectional RS-232 ports, 4 built-in assignable relays, 8 GPIO; PoE powered (IEEE 802.3at Class 3, 15W).
Touch panel controller with 3 bidirectional RS-232 ports, 2 unidirectional RS-232 ports, 4 built-in assignable relays, 8 GPIO; PoE powered (IEEE 802.3at Class 3, 15W).
Key Features
- Programmed via Project Designer software
- Three bidirectional RS-232 ports or six IR ports
- Two unidirectional RS-232 ports or four IR ports
- Four built-in assignable relays
- Eight GPIO for control of relays, switches, and sensors
- PoE powered (IEEE 802.3at Class 3, 15 watts)
- 5-year warranty

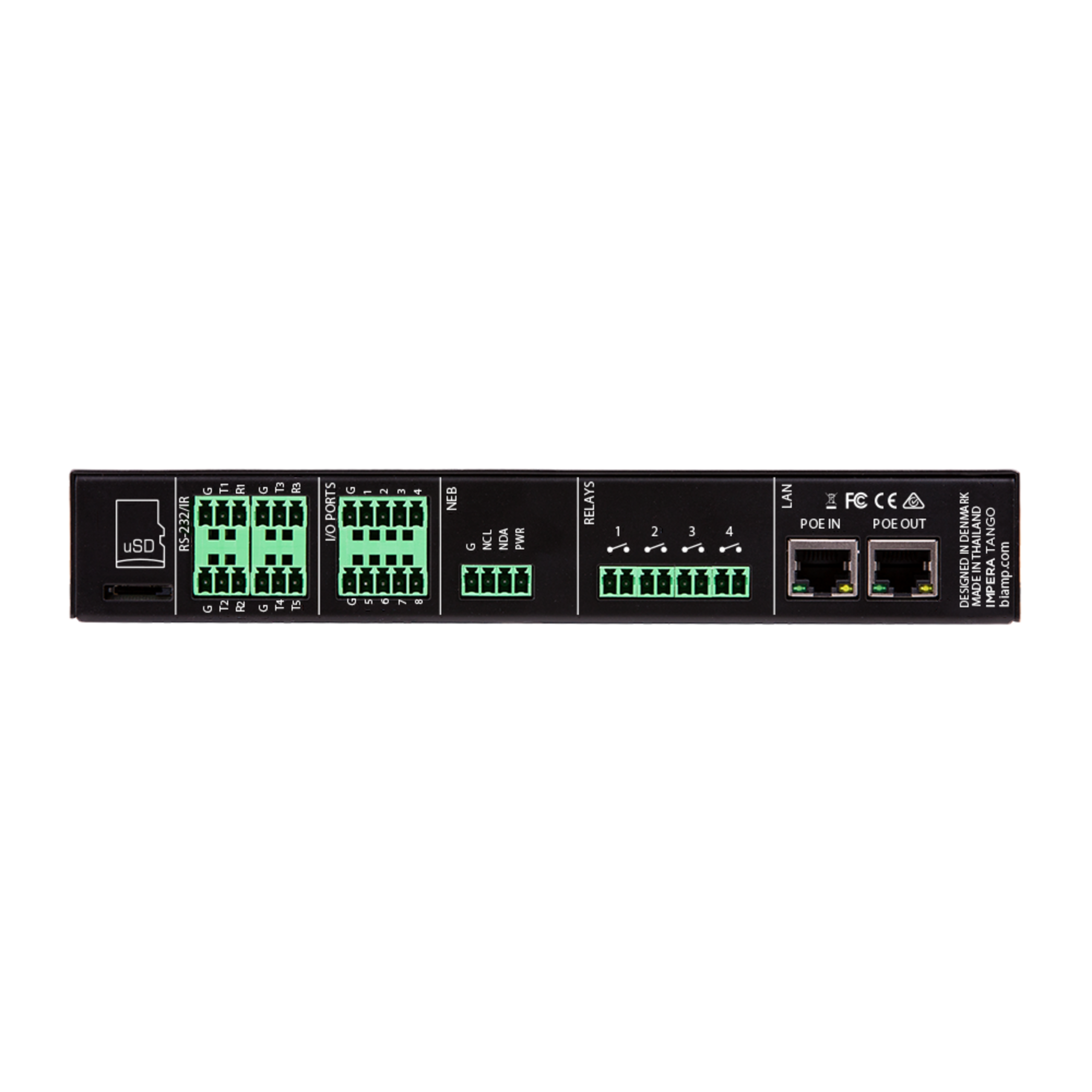

The Impera Tango is a controller for Biamp Apprimo touch panels, enabling easy control of all room functions. The Tango can host up to 5 touch panel interfaces. It is equipped with three bidirectional RSâ232/IR ports for sending commands with feedback functionality; 2 unidirectional RS-232/IR ports for sending commands to AV devices using serial or infrared communication; 8 GPIO connections for control of relays, switches and sensors; LAN control for 10 third-party and 8 Biamp devices; and 4 assignable relays for control of mechanical devices. The Impera Tango is a versatile AV control system for presentation spaces, learning environments, conference rooms, and more. Configured together in Project Designer, the Tango enables each Apprimo touch panel to have multiple pages of control functionality.
Impera touch panel controllers are configured via our Project Designer software.
