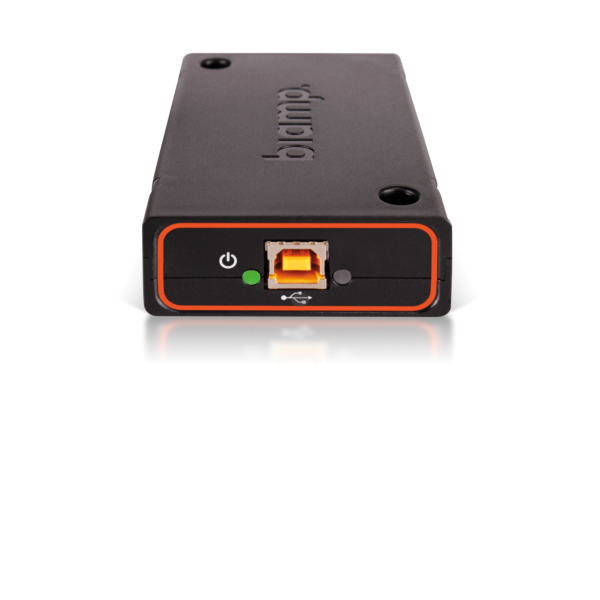

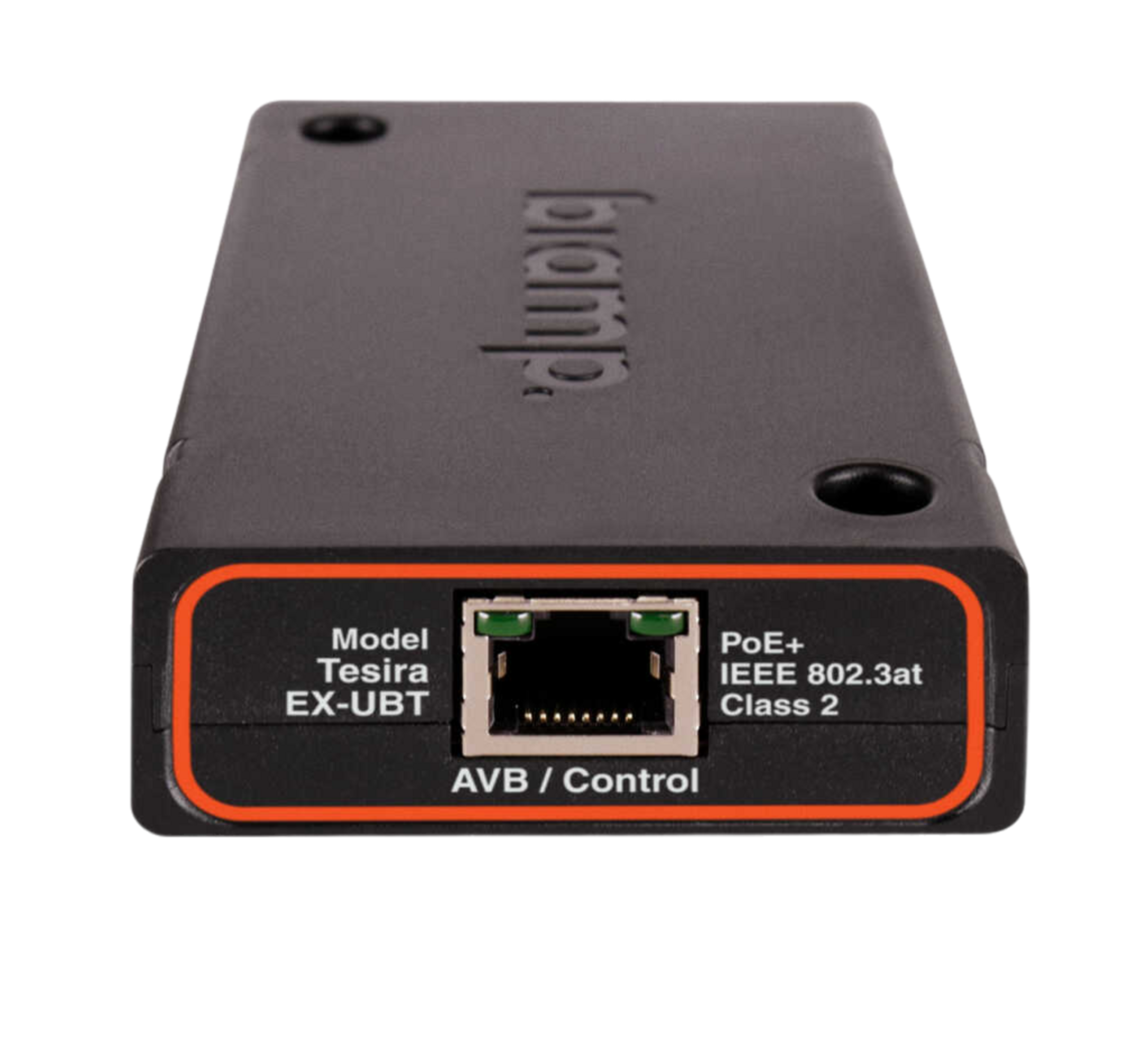

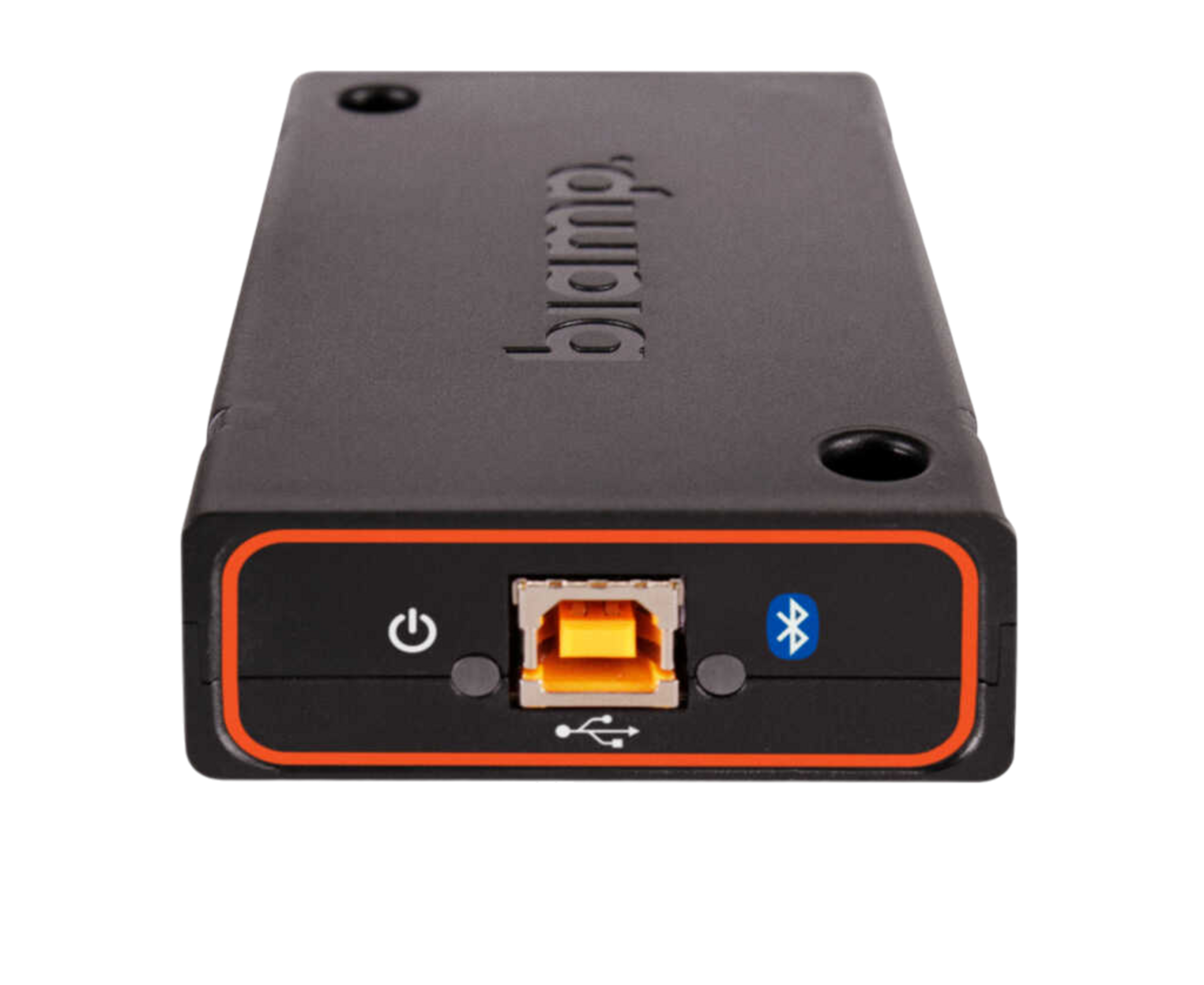

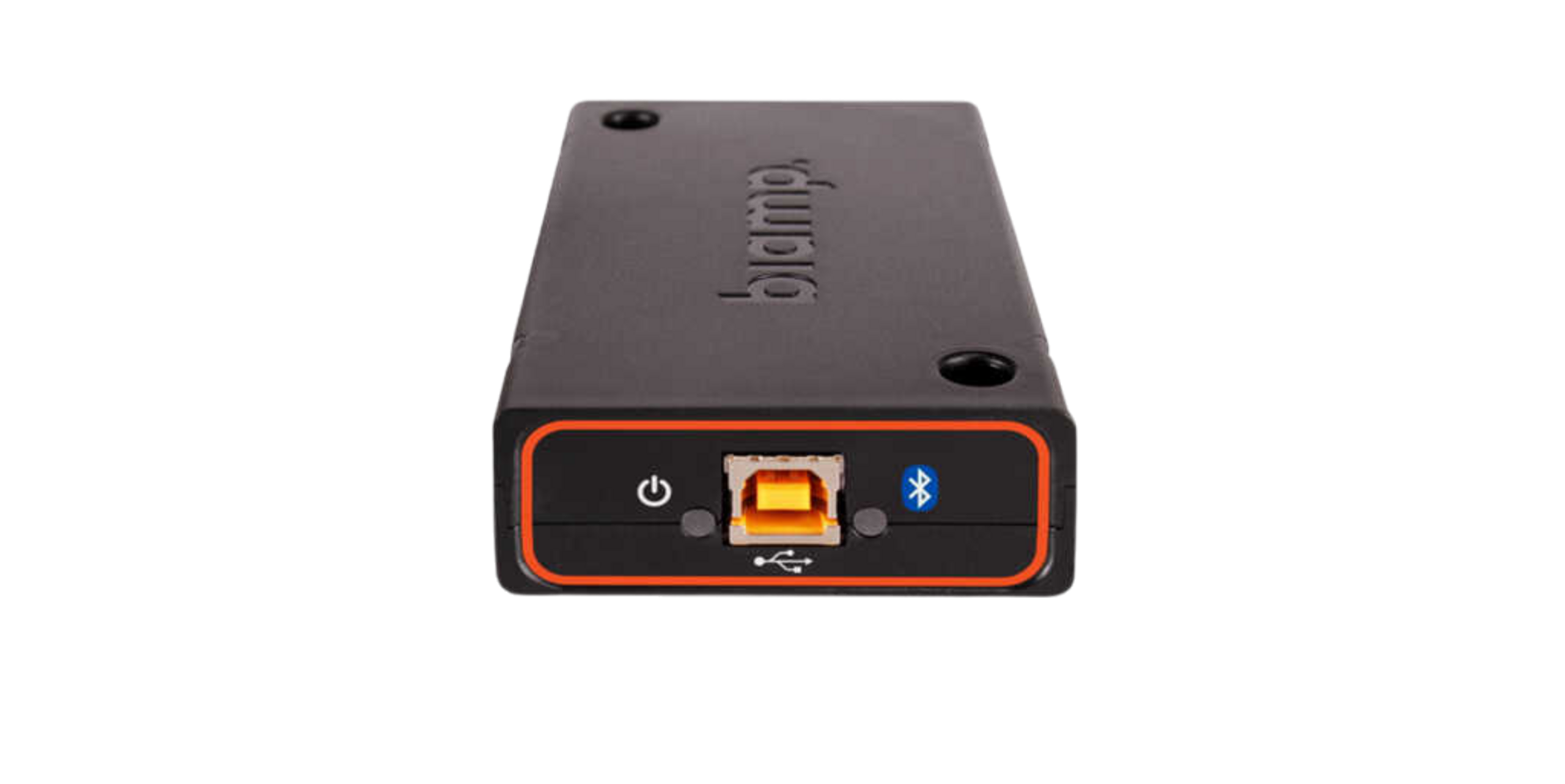

Biamp Tesira EX-UBT PoE AVB/USB expander with Bluetooth® wireless technology

Login to see prices

Key Features

Microsoft Teams and Zoom Certified
Cisco Verified
Supports up to 8 channels of configurable USB audio
Supports Bluetooth® wireless technology
LED indicators for power and wireless status
Configurable via Tesira software
Powered by PoE+ (IEEE 802.3at Class 2, 7W)
CE marked, UL listed, and RoHS compliant
5-year warranty
Compliant with the US Trade Agreement Act (TAA)

Get a Quote

Add to compare

Add to wishlist

Shipping & Delivery

Courier delivery

Our courier will deliver to the specified address

2-3 Days

From $20

DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

From $40

Warranty 1 year

More details

Free 30-Day returns

More details

Specification

Overview

TAA Compliant	TAA Compliant
Humidity	0-95% relative humidity (non-condensing)
Audio	Supports up to 8 channels of configurable USB audio USB: Bit Depth: 16-bit / 24-bit Number of Channels: up to 8 Sample Rate: 48kHz
Height	0.9 inches (24mm)
Weight	0.2 lbs (0.1 kg)
Warranty	5-year warranty
Ambient Operating Temperature Range	32 – 104° F (0 – 40° C)
Altitude	Altitude: 0-10,000 ft (0-3000m) MSL
Certifications	FCC Part 15B (USA) CE marked (Europe) UL and C-UL listed (USA and Canada) RoHS Directive (Europe)
Power	Maximum Transmit Power: BER/EDR: 6.43 dBm (EIRP) BLE: 7.69 dBm (EIRP) Receive Sensitivity (0.1% BER): -88 dBm Frequency Band: 2,402 to 2,480 MHz Wireless Range: Up to 100 feet (30 m) Power: PoE (IEEE
Network Connection(s)	RJ-45 with Ethernet cable (CAT5e and above)
Width	2.5 inches (64mm)
Depth	4.2 inches (106mm)

Processor

TAA Compliant	TAA Compliant
Humidity	0-95% relative humidity (non-condensing)
Audio	Supports up to 8 channels of configurable USB audio USB: Bit Depth: 16-bit / 24-bit Number of Channels: up to 8 Sample Rate: 48kHz
Height	0.9 inches (24mm)
Weight	0.2 lbs (0.1 kg)
Warranty	5-year warranty
Ambient Operating Temperature Range	32 – 104° F (0 – 40° C)
Altitude	Altitude: 0-10,000 ft (0-3000m) MSL
Certifications	FCC Part 15B (USA) CE marked (Europe) UL and C-UL listed (USA and Canada) RoHS Directive (Europe)
Power	Maximum Transmit Power: BER/EDR: 6.43 dBm (EIRP) BLE: 7.69 dBm (EIRP) Receive Sensitivity (0.1% BER): -88 dBm Frequency Band: 2,402 to 2,480 MHz Wireless Range: Up to 100 feet (30 m) Power: PoE (IEEE
Network Connection(s)	RJ-45 with Ethernet cable (CAT5e and above)
Width	2.5 inches (64mm)
Depth	4.2 inches (106mm)

Display

TAA Compliant	TAA Compliant
Humidity	0-95% relative humidity (non-condensing)
Audio	Supports up to 8 channels of configurable USB audio USB: Bit Depth: 16-bit / 24-bit Number of Channels: up to 8 Sample Rate: 48kHz
Height	0.9 inches (24mm)
Weight	0.2 lbs (0.1 kg)
Warranty	5-year warranty
Ambient Operating Temperature Range	32 – 104° F (0 – 40° C)
Altitude	Altitude: 0-10,000 ft (0-3000m) MSL
Certifications	FCC Part 15B (USA) CE marked (Europe) UL and C-UL listed (USA and Canada) RoHS Directive (Europe)
Power	Maximum Transmit Power: BER/EDR: 6.43 dBm (EIRP) BLE: 7.69 dBm (EIRP) Receive Sensitivity (0.1% BER): -88 dBm Frequency Band: 2,402 to 2,480 MHz Wireless Range: Up to 100 feet (30 m) Power: PoE (IEEE
Network Connection(s)	RJ-45 with Ethernet cable (CAT5e and above)
Width	2.5 inches (64mm)
Depth	4.2 inches (106mm)

RAM

TAA Compliant	TAA Compliant
Humidity	0-95% relative humidity (non-condensing)
Audio	Supports up to 8 channels of configurable USB audio USB: Bit Depth: 16-bit / 24-bit Number of Channels: up to 8 Sample Rate: 48kHz
Height	0.9 inches (24mm)
Weight	0.2 lbs (0.1 kg)
Warranty	5-year warranty
Ambient Operating Temperature Range	32 – 104° F (0 – 40° C)
Altitude	Altitude: 0-10,000 ft (0-3000m) MSL
Certifications	FCC Part 15B (USA) CE marked (Europe) UL and C-UL listed (USA and Canada) RoHS Directive (Europe)
Power	Maximum Transmit Power: BER/EDR: 6.43 dBm (EIRP) BLE: 7.69 dBm (EIRP) Receive Sensitivity (0.1% BER): -88 dBm Frequency Band: 2,402 to 2,480 MHz Wireless Range: Up to 100 feet (30 m) Power: PoE (IEEE
Network Connection(s)	RJ-45 with Ethernet cable (CAT5e and above)
Width	2.5 inches (64mm)
Depth	4.2 inches (106mm)

Storage

TAA Compliant	TAA Compliant
Humidity	0-95% relative humidity (non-condensing)
Audio	Supports up to 8 channels of configurable USB audio USB: Bit Depth: 16-bit / 24-bit Number of Channels: up to 8 Sample Rate: 48kHz
Height	0.9 inches (24mm)
Weight	0.2 lbs (0.1 kg)
Warranty	5-year warranty
Ambient Operating Temperature Range	32 – 104° F (0 – 40° C)
Altitude	Altitude: 0-10,000 ft (0-3000m) MSL
Certifications	FCC Part 15B (USA) CE marked (Europe) UL and C-UL listed (USA and Canada) RoHS Directive (Europe)
Power	Maximum Transmit Power: BER/EDR: 6.43 dBm (EIRP) BLE: 7.69 dBm (EIRP) Receive Sensitivity (0.1% BER): -88 dBm Frequency Band: 2,402 to 2,480 MHz Wireless Range: Up to 100 feet (30 m) Power: PoE (IEEE
Network Connection(s)	RJ-45 with Ethernet cable (CAT5e and above)
Width	2.5 inches (64mm)
Depth	4.2 inches (106mm)

Video Card

TAA Compliant	TAA Compliant
Humidity	0-95% relative humidity (non-condensing)
Audio	Supports up to 8 channels of configurable USB audio USB: Bit Depth: 16-bit / 24-bit Number of Channels: up to 8 Sample Rate: 48kHz
Height	0.9 inches (24mm)
Weight	0.2 lbs (0.1 kg)
Warranty	5-year warranty
Ambient Operating Temperature Range	32 – 104° F (0 – 40° C)
Altitude	Altitude: 0-10,000 ft (0-3000m) MSL
Certifications	FCC Part 15B (USA) CE marked (Europe) UL and C-UL listed (USA and Canada) RoHS Directive (Europe)
Power	Maximum Transmit Power: BER/EDR: 6.43 dBm (EIRP) BLE: 7.69 dBm (EIRP) Receive Sensitivity (0.1% BER): -88 dBm Frequency Band: 2,402 to 2,480 MHz Wireless Range: Up to 100 feet (30 m) Power: PoE (IEEE
Network Connection(s)	RJ-45 with Ethernet cable (CAT5e and above)
Width	2.5 inches (64mm)
Depth	4.2 inches (106mm)

Connectivity

TAA Compliant	TAA Compliant
Humidity	0-95% relative humidity (non-condensing)
Audio	Supports up to 8 channels of configurable USB audio USB: Bit Depth: 16-bit / 24-bit Number of Channels: up to 8 Sample Rate: 48kHz
Height	0.9 inches (24mm)
Weight	0.2 lbs (0.1 kg)
Warranty	5-year warranty
Ambient Operating Temperature Range	32 – 104° F (0 – 40° C)
Altitude	Altitude: 0-10,000 ft (0-3000m) MSL
Certifications	FCC Part 15B (USA) CE marked (Europe) UL and C-UL listed (USA and Canada) RoHS Directive (Europe)
Power	Maximum Transmit Power: BER/EDR: 6.43 dBm (EIRP) BLE: 7.69 dBm (EIRP) Receive Sensitivity (0.1% BER): -88 dBm Frequency Band: 2,402 to 2,480 MHz Wireless Range: Up to 100 feet (30 m) Power: PoE (IEEE
Network Connection(s)	RJ-45 with Ethernet cable (CAT5e and above)
Width	2.5 inches (64mm)
Depth	4.2 inches (106mm)

Features

TAA Compliant	TAA Compliant
Humidity	0-95% relative humidity (non-condensing)
Audio	Supports up to 8 channels of configurable USB audio USB: Bit Depth: 16-bit / 24-bit Number of Channels: up to 8 Sample Rate: 48kHz
Height	0.9 inches (24mm)
Weight	0.2 lbs (0.1 kg)
Warranty	5-year warranty
Ambient Operating Temperature Range	32 – 104° F (0 – 40° C)
Altitude	Altitude: 0-10,000 ft (0-3000m) MSL
Certifications	FCC Part 15B (USA) CE marked (Europe) UL and C-UL listed (USA and Canada) RoHS Directive (Europe)
Power	Maximum Transmit Power: BER/EDR: 6.43 dBm (EIRP) BLE: 7.69 dBm (EIRP) Receive Sensitivity (0.1% BER): -88 dBm Frequency Band: 2,402 to 2,480 MHz Wireless Range: Up to 100 feet (30 m) Power: PoE (IEEE
Network Connection(s)	RJ-45 with Ethernet cable (CAT5e and above)
Width	2.5 inches (64mm)
Depth	4.2 inches (106mm)

Battery

TAA Compliant	TAA Compliant
Humidity	0-95% relative humidity (non-condensing)
Audio	Supports up to 8 channels of configurable USB audio USB: Bit Depth: 16-bit / 24-bit Number of Channels: up to 8 Sample Rate: 48kHz
Height	0.9 inches (24mm)
Weight	0.2 lbs (0.1 kg)
Warranty	5-year warranty
Ambient Operating Temperature Range	32 – 104° F (0 – 40° C)
Altitude	Altitude: 0-10,000 ft (0-3000m) MSL
Certifications	FCC Part 15B (USA) CE marked (Europe) UL and C-UL listed (USA and Canada) RoHS Directive (Europe)
Power	Maximum Transmit Power: BER/EDR: 6.43 dBm (EIRP) BLE: 7.69 dBm (EIRP) Receive Sensitivity (0.1% BER): -88 dBm Frequency Band: 2,402 to 2,480 MHz Wireless Range: Up to 100 feet (30 m) Power: PoE (IEEE
Network Connection(s)	RJ-45 with Ethernet cable (CAT5e and above)
Width	2.5 inches (64mm)
Depth	4.2 inches (106mm)

General

TAA Compliant	TAA Compliant
Humidity	0-95% relative humidity (non-condensing)
Audio	Supports up to 8 channels of configurable USB audio USB: Bit Depth: 16-bit / 24-bit Number of Channels: up to 8 Sample Rate: 48kHz
Height	0.9 inches (24mm)
Weight	0.2 lbs (0.1 kg)
Warranty	5-year warranty
Ambient Operating Temperature Range	32 – 104° F (0 – 40° C)
Altitude	Altitude: 0-10,000 ft (0-3000m) MSL
Certifications	FCC Part 15B (USA) CE marked (Europe) UL and C-UL listed (USA and Canada) RoHS Directive (Europe)
Power	Maximum Transmit Power: BER/EDR: 6.43 dBm (EIRP) BLE: 7.69 dBm (EIRP) Receive Sensitivity (0.1% BER): -88 dBm Frequency Band: 2,402 to 2,480 MHz Wireless Range: Up to 100 feet (30 m) Power: PoE (IEEE
Network Connection(s)	RJ-45 with Ethernet cable (CAT5e and above)
Width	2.5 inches (64mm)
Depth	4.2 inches (106mm)

Description

Tesira EX-UBT

PoE AVB/USB expander with Bluetooth® wireless technology.

Key Features

Microsoft Teams and Zoom Certified
Cisco Verified
Supports up to 8 channels of configurable USB audio
Supports Bluetooth® wireless technology
LED indicators for power and wireless status
Configurable via Tesira software
Powered by PoE+ (IEEE 802.3at Class 2, 7W)
CE marked, UL listed, and RoHS compliant
5-year warranty
Compliant with the US Trade Agreement Act (TAA)

Get a Quote

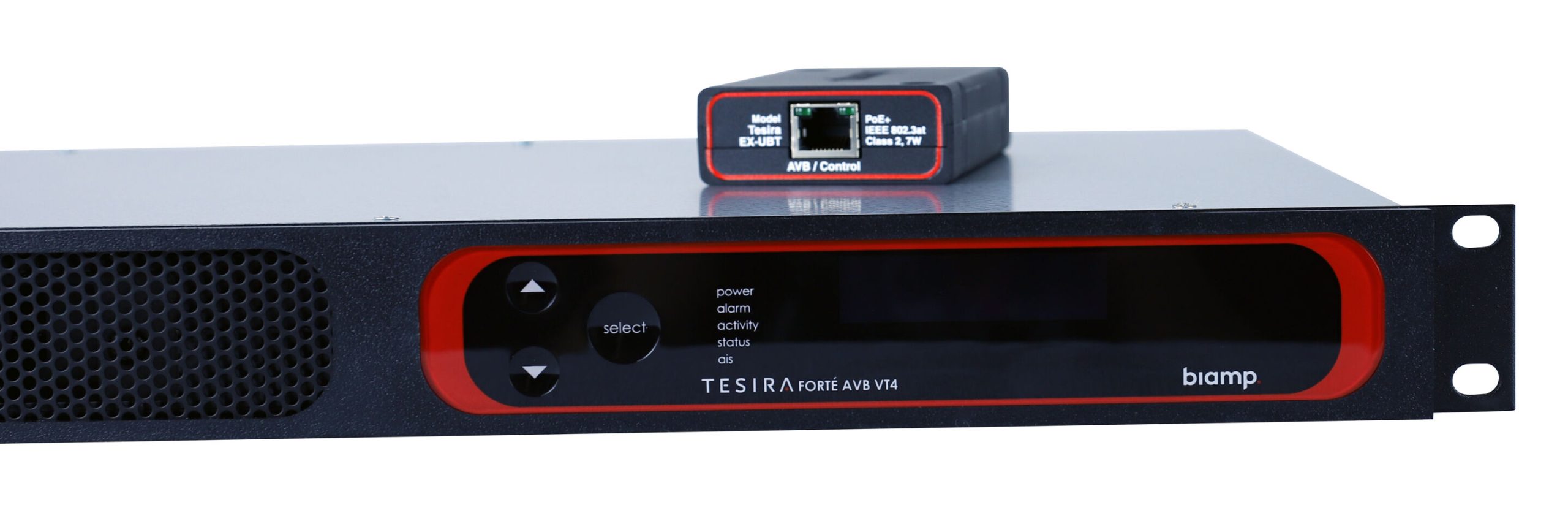

The EX-UBT is an AVB/USB expander for use in TesiraÂ® systems. It provides reliable digital audio I/O via USB in installations currently served by USB extenders where the USB connection distance exceeds the maximum allowable cable length of 5 meters.

The EX-UBT may also be used in situations requiring multiple USB audio inputs, or to retrofit existing Tesira installations that do not currently provide USB audio capabilities, such as those using Tesira SERVER or SERVER-IO as their DSP. Powered by PoE+ (IEEE 802.3at Class 2, 7W), the EX-UBT also supports BluetoothÂ® wireless technology, which is configured through Tesira software.

The EX-UBT uses BluetoothÂ® wireless technology to provide a cable-free solution for several use cases, including but not limited to: teleconferencing using soft codecs or cell phone and supplying background music to a Tesira system. The EX-UBT is well suited for a variety of room types and sizes that require USB audio, such as conference rooms or multipurpose spaces.

The Tesira EX-UBT USB Expander complies with the United States Trade Agreement Act (TAA), allowing it to be included in GSA Schedule contractorsâ sales bids for the U.S. federal government.
