Commercial Loudspeakers CCA-80 Grey
Constant coverage aisle, 3-way, 8-inch, triaxial, asymmetric horn loaded loudspeaker.
Constant coverage aisle, 3-way, 8-inch, triaxial, asymmetric horn loaded loudspeaker.
Key Features
- Purpose-built for long aisles and concourses in warehouses, sports complexes, shopping malls, hotels, themed entertainment venues, and more
- Asymmetric vertical waveguide with up to 6:1 throw ratio for extended coverage
- Efficient design with 70V/100V transformers for cost-effective sound reinforcement
- Unique coverage patterns provide extended distance without significant cost escalation

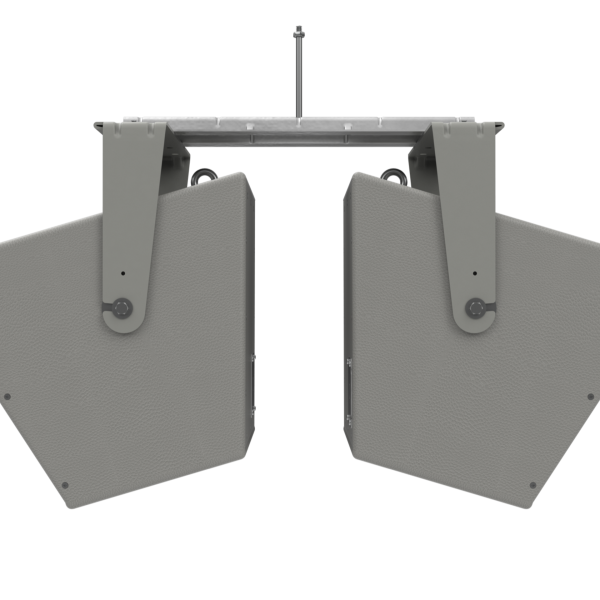

- Dual speaker option provides additional mounting flexibility and reduced total system costs
- 5-year warranty

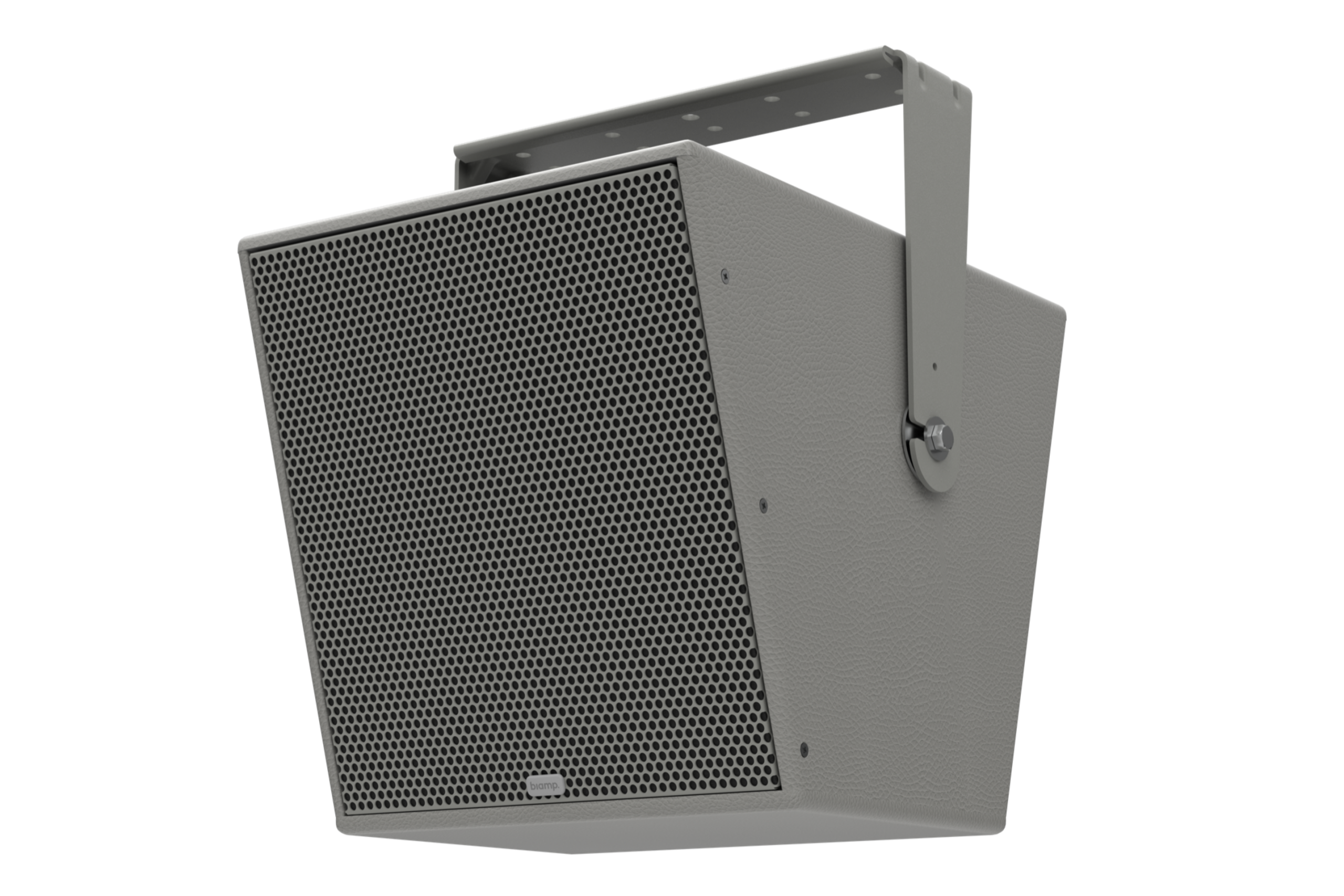

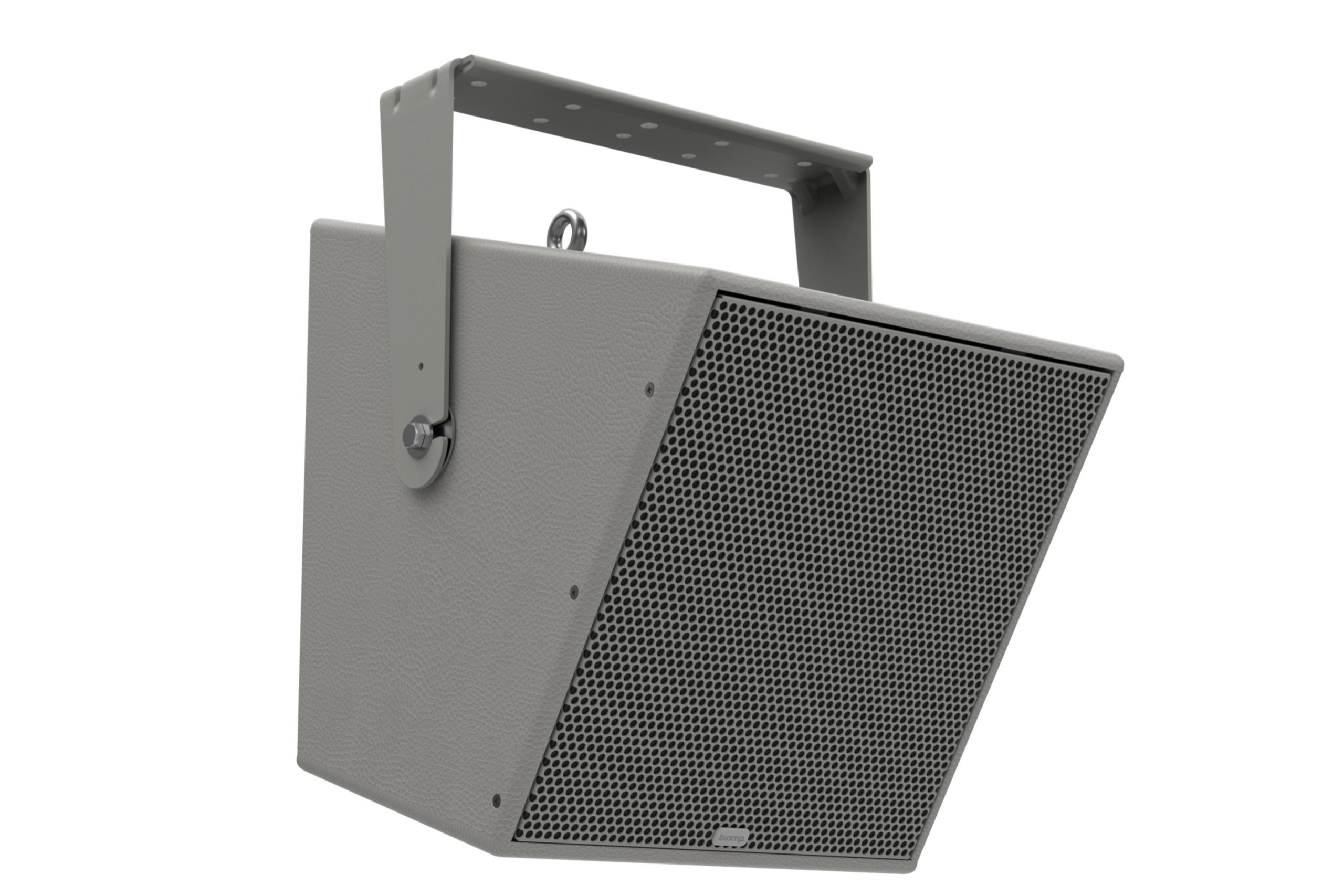

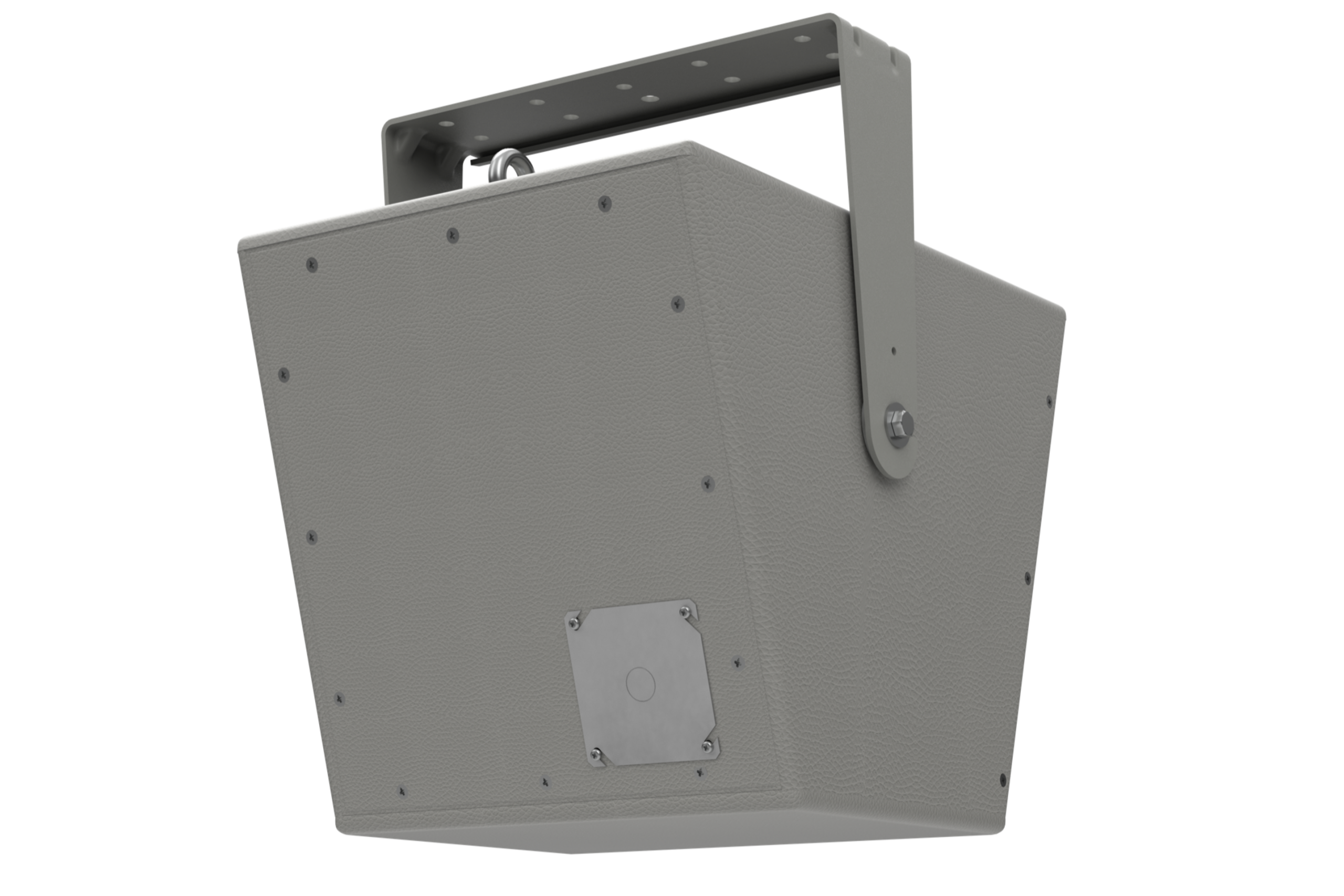

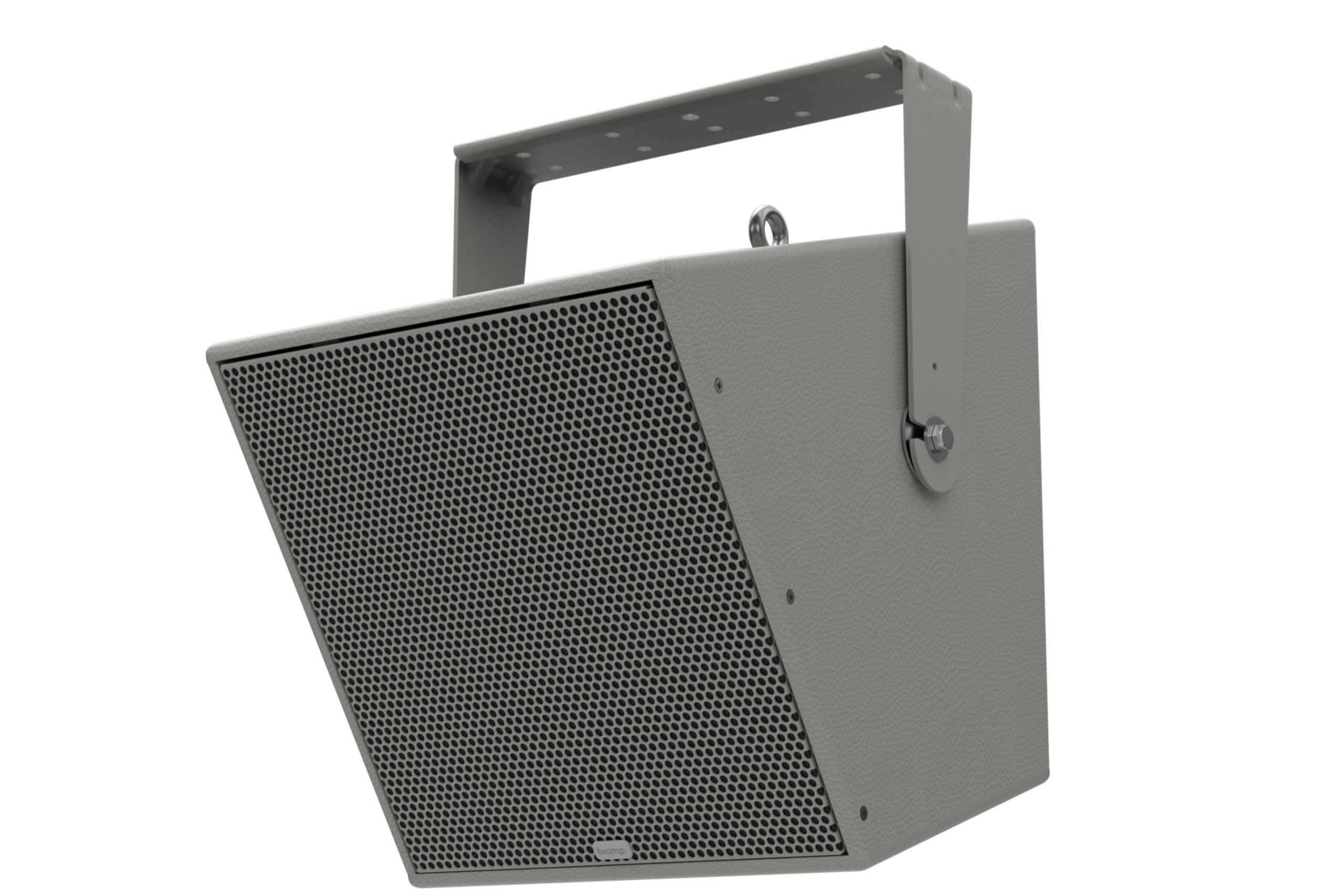

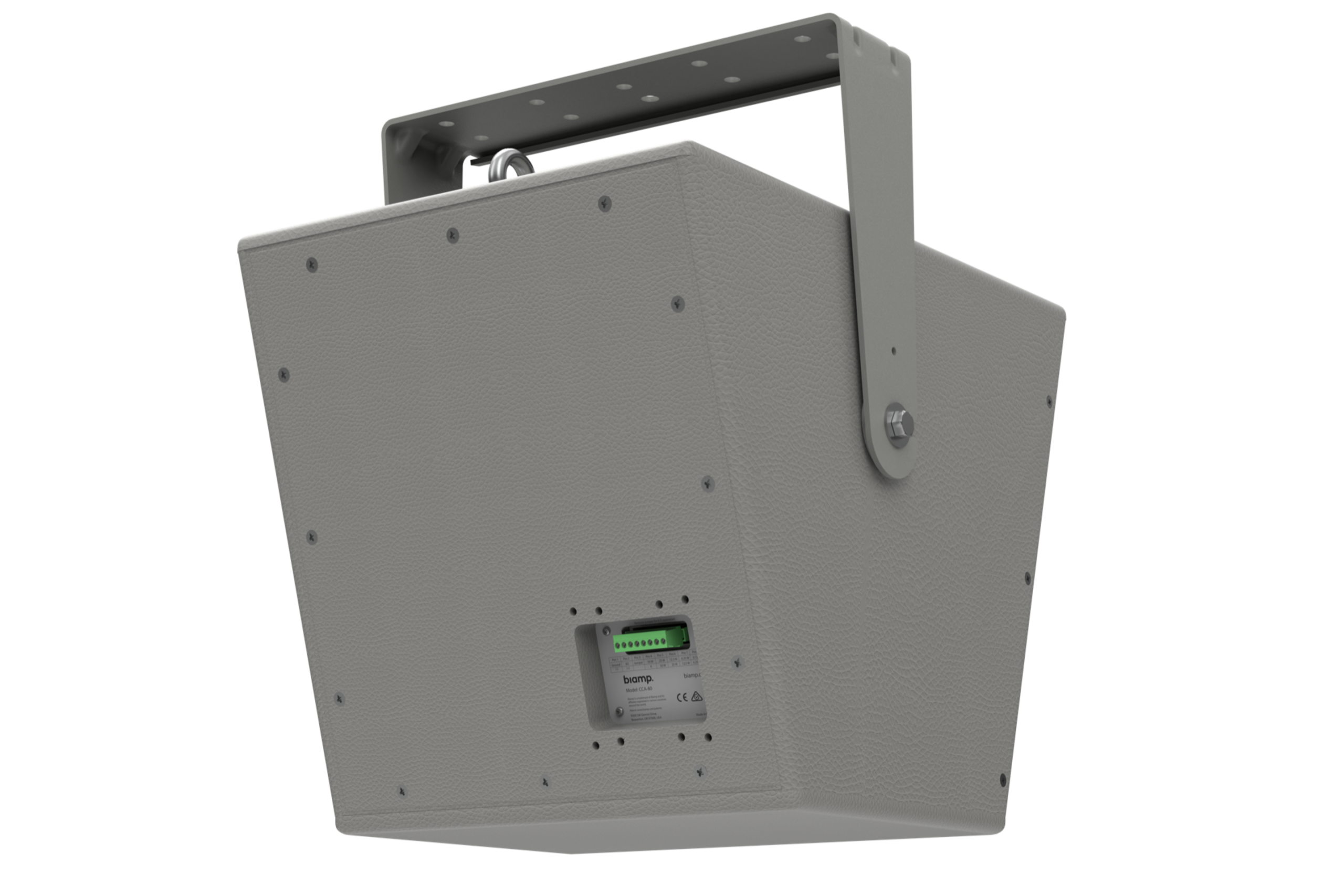

The CCA-80 constant coverage aisle loudspeaker is an asymmetric, full-range, three-way, triaxial loudspeaker engineered for optimal performance in long, high-ceilinged narrow spaces such as aisles and corridors.
Available as a key update to Warehouse Designer software, Biamp Audition lets system designers both visualize and hear how CCA-80 loudspeaker deployments will performâbefore installation.
With a combination of traditional coverage mapping and binaural audio simulation, Biamp Audition makes it easy to evaluate loudspeaker placement and performance across every area of the space. Just click anywhere on the layout to experience how the system will sound from that location, enabling confident decisions and reducing costly on-site changes.
The asymmetric waveguide design offers precise, uniform coverage with a throw ratio of 6:1. The narrow upper portion of the horn provides extended coverage for distant areas, while the progressively wider, but attenuated, lower portion of the horn ensures full coverage directly beneath the mounting position. The horn is titled downward within the enclosure, a unique design that minimizes aiming precision requirements and guarantees coverage directly beneath the speaker, outperforming traditional horns.
The CCA-80 produces an unrivaled consistent SPL level within its coverage pattern, unlike typical speakers where SPL falls off with distance, making it ideal for background music and voice paging in large spaces. It is optimized to work in the most challenging applications, like warehousing, with mounting heights up to 36 feet.
This speaker delivers full-range 115 Hz to 14 kHz audio, ensuring superior music reproduction and voice clarity. The triaxial design maximizes coherency, resulting in a loudspeaker suitable for both clear voice paging and full range music playback.
This system offers a significant cost advantage, reducing total system costs by over 50% compared to existing premium solutions. No other product on the market offers this level of innovation and efficiency in asymmetric paging speakers.
AMPLIFIED LOUDSPEAKER CONTROLLERS
Voltera D and D M Series ALCs are recommended for this product.
