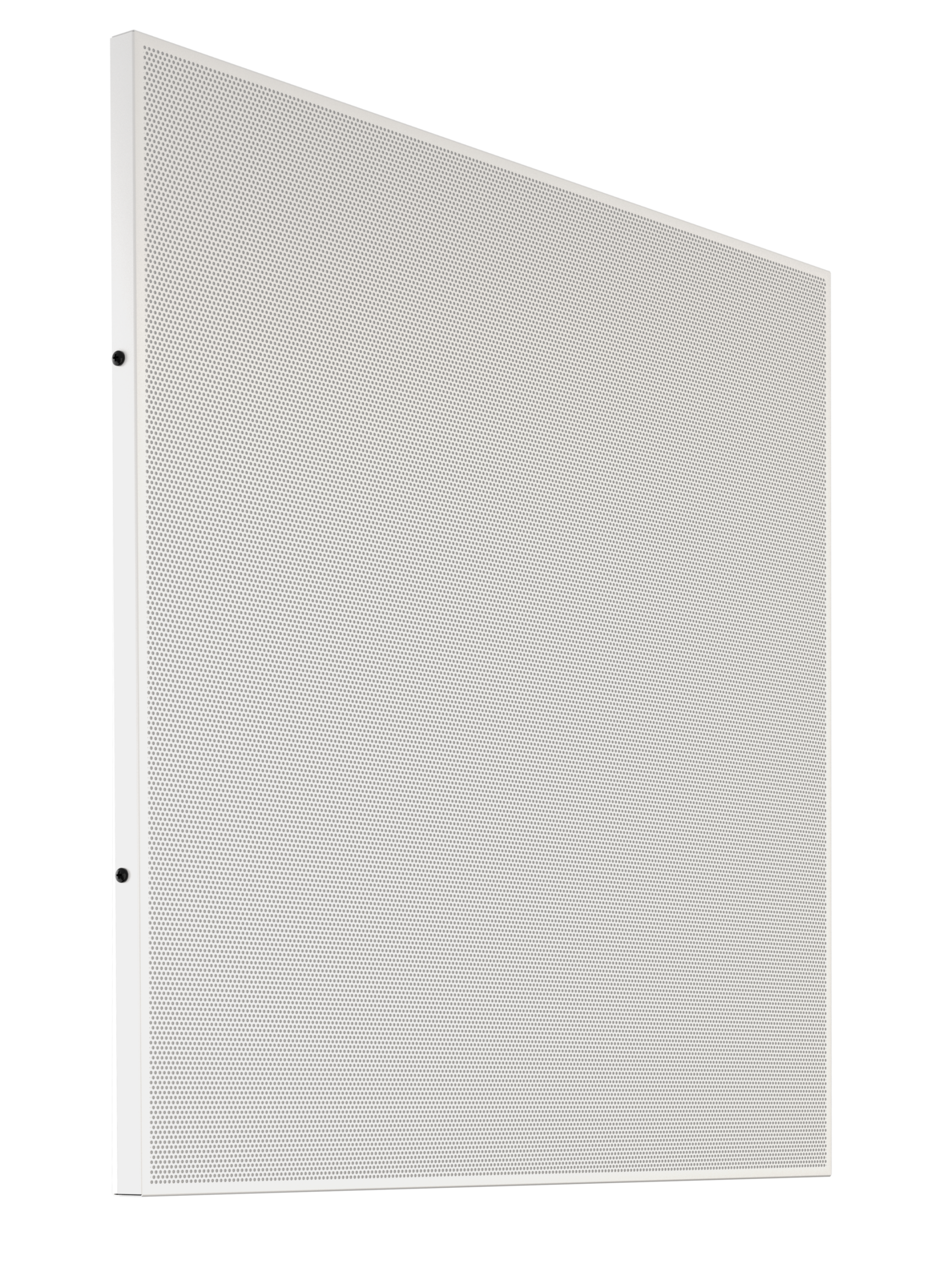

Commercial Loudspeakers DC220T White
Full range, 6.5-inch, 2-foot x 2-foot, drop-ceiling, tile loudspeaker with 10W, 8 ohms, 70V/100V transformer, white.
Full range, 6.5-inch, 2-foot x 2-foot, drop-ceiling, tile loudspeaker with 10W, 8 ohms, 70V/100V transformer, white.
Key Features
- High sensitivity, wide coverage
- Designed for use with any Vocia paging system
- Low impedance or 70 V / 100 V operation
- Easy installation – drop in the grid and connect cabling
- Low-profile, less than 102 mm (4-inch) total depth
- Conduit knock-outs on the input cover meet plenum air space handling requirements
- 5-year warranty
Biampâs fastest installing ceiling loudspeaker, the DC220T is a drop-ceiling loudspeaker with a 6.5-inch full-range driver that delivers impressive audio performance while delivering a dispersion pattern 20% wider than competitors. Ideal for background music and crystal-clear paging across a variety of venues, it is engineered to provide exceptional performance when paired with Vocia voice communication system.

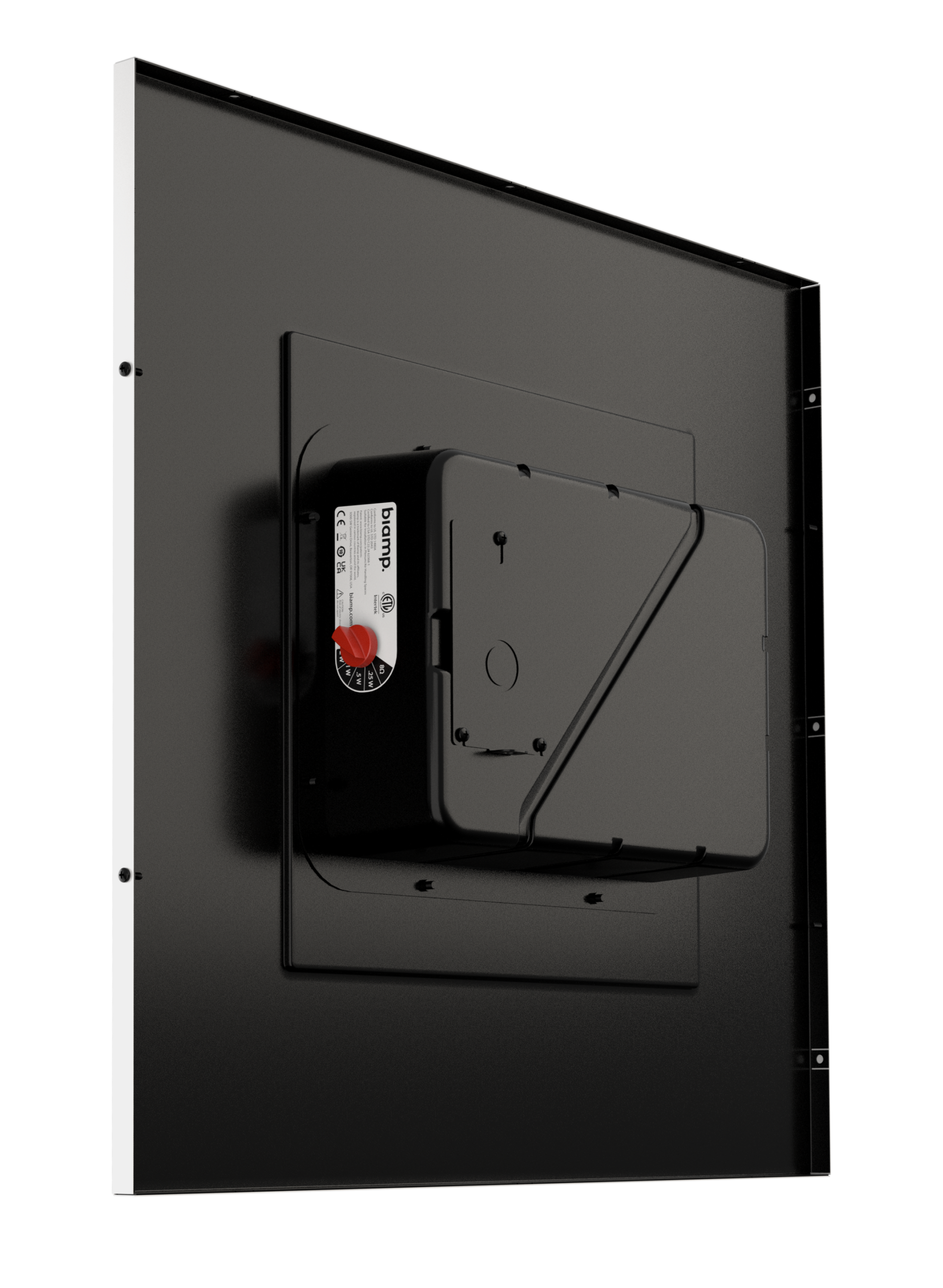

The preassembled construction allows for swift placement in standard 2-foot x 2-foot ceiling grids, significantly reducing installation labor time. Additionally, the DC220T can be used in larger 2-foot x 4-foot rectangular ceiling grids with the included cross-T rails. The included wire nuts facilitate easy 2-conductor connections.
UL1480A and UL2043 certified, the DC220T also meets the City of Chicago plenum space wiring requirements and comes with additional accessories for new construction installation and safety cable attachment.
The DC220T offers the flexibility of low impedance or 70 V/100 V operation while featuring a wattage selector switch for convenient adjustment of tap levels.
Typical applications include paging, and background music in many venues.
