Community IV6-1122C15

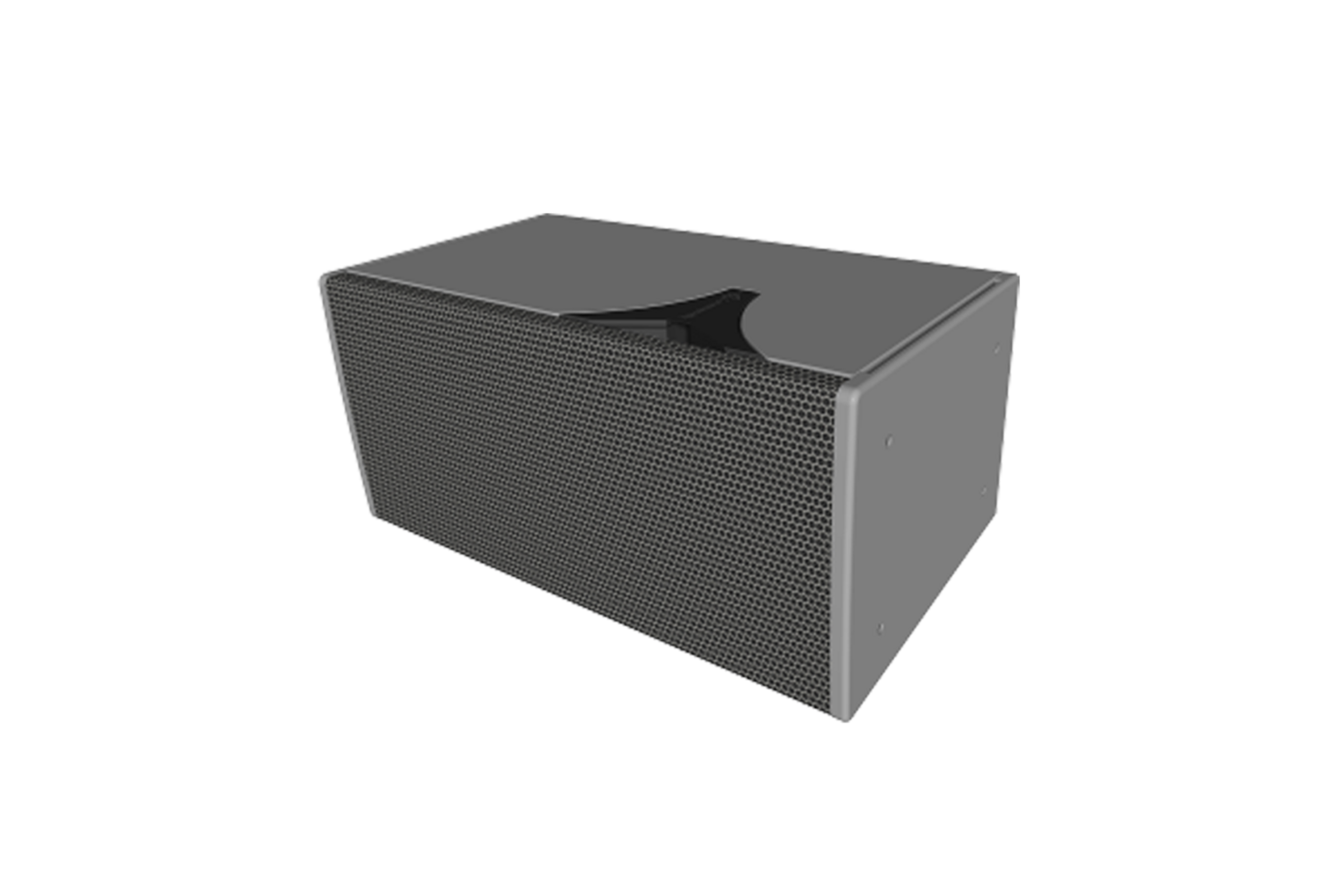

The IV6-1122/05 is a 12-inch, 2-way 120° x 15° loudspeaker, configured-to-order.
The IV6-1122/05 is a 12-inch, 2-way 120° x 15° loudspeaker, configured-to-order.
Key Features
- Configured-to-order, 12-inch, 2-way, modular vertical array element, 120°x15°
- Custom color options, and custom cable length on outdoor models
- Modular, can be combined to make arrays of up to twenty elements @ 10:1 safety ratio
- Versatile configurations for both constant curve and line array applications
- Built-in Passive Acoustic Optimization settings allow array response shaping using one amplifier channel
- Elegant acoustics designed for permanent installations
- Exclusive Acoustic Optimization and Rigging Safety Check modules integrated into EASE® Focus 3
- Indoor and Outdoor (weather-resistant) models available
- 5-year warranty
- Compliant with the US Trade Agreement Act (TAA)
The I Series Modular Vertical Array 600 is a scalable, adaptive sound reinforcement system featuring multiple vertically arrayable elements designed to be used in combination or separately, and with or without splay between cabinets, providing an extensive range of vertical coverage angle and throw distance configurations. Two carefully chosen array elements, 120°x5° and 120°x15°, overcome the physical limitations and acoustical tuning difficulties of conventional line arrays and constant-curvature (point source) arrays while maintaining the best qualities of each.
Two complementary, discreet coverage angles permit the creation of true line array configurations for longer throws, gently curving progressive curvature arrays for medium size applications and compact constant-curvature arrays where nearfield point source coverage is required. Constraining the splay angle between any adjacent element to 0°, 2.5° or 5° eliminates excessive coverage overlap as well as gaps in coverage between adjacent elements that occur when typical line array elements are deployed in their straightest or most curved configurations. The splay brackets also provide adequate adjustment between IV6 elements to adapt the vertical coverage angle of an array to fit the needs of any application.
After resolving physical array configuration needs, typical vertical arrays still suffer from level and frequency response imbalances between the nearest and furthest listeners. Multi-channel DSP-based solutions are available to help correct these issues, but are typically complicated and expensive. Instead, the IV6 has a built-in passive system to resolve the issue that requires no additional amplifier or DSP channels, called Passive Acoustic Optimization (PAO).
The new Biamp VenuePolar EASE Focus plugin automates the loudspeaker system design for the Community IV6 Modular Vertical Array and is included within the IV6 GLL file. IV6 offers two cabinet choices (5° or 15°) and has 55 different response shaping within the Passive Acoustic Optimization (PAO) settings found on the rear of the cabinet. VenuePolar helps system designers quickly and easily determine the recommended cabinet quantity, model, frame angle, splay angle for a venue layout as well as determine the PAO settings for each cabinet, reducing countless possible setting combinations to a single button press in the software.
