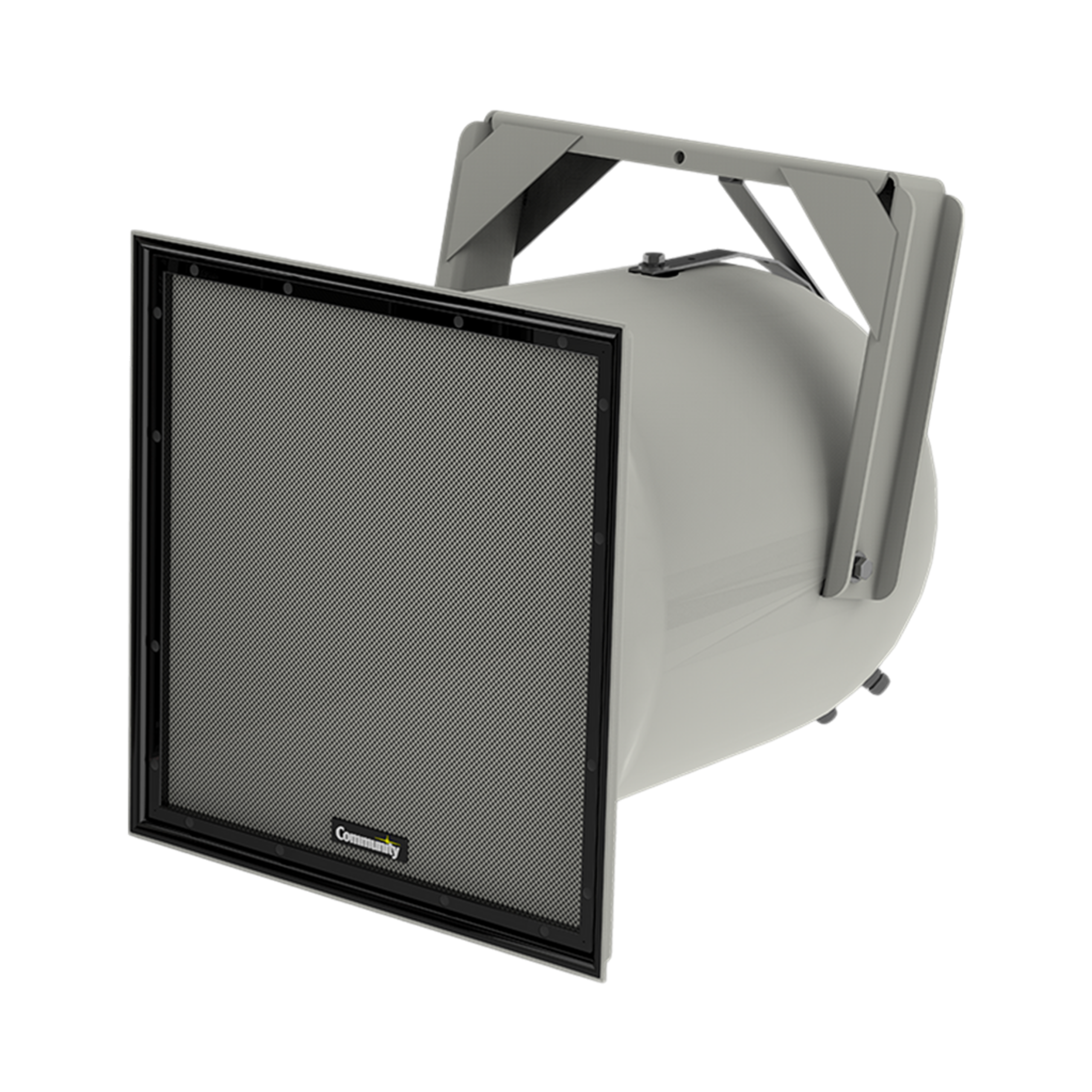

Community R2-52MAX
Full-range, 3-way, dual 12-inch, high output, weather-resistant, 50° x 20° loudspeaker.
Full-range, 3-way, dual 12-inch, high output, weather-resistant, 50° x 20° loudspeaker.
Key Features
- 50° x 20° coverage
- Modern stadium loudspeaker, designed to meet the needs of today’s sporting venues for superb musicality, excellent speech intelligibility and very high output
- Signal aligned passive MF/HF horn coaxially mounted in front of electronically signal aligned LF drivers
- Very high sensitivity HF driver for improved balanced response and extension
- High sensitivity and very high output (135 dB max), with flat extended frequency response
- 5-year warranty
- Compliant with the US Trade Agreement Act (TAA)
The R2-52MAX is a three-way, full-range loudspeaker system designed to provide premium music reproduction at very high output levels, and also improves the legendary R2 voice projection and intelligibility capabilities. It is designed with the same materials and construction as the standard R2 for extreme weather resistance, and can withstand long-term exposure to tough environmental conditions.
The R2-MAX is constructed with premium components in a biamp format to maximally optimize its performance. It uses a very high sensitivity 1-inch HF compression driver that provides extended HF response and a balanced frequency response with the rest of the system. Operated with a high crossover frequency, the HF driver maintains very high headroom, delivering effortless performance. The dual, high power 12-inch LF drivers feature an aluminum demodulation ring for very clean, low distortion performance. The dual midrange drivers are higher performance versions of the legendary low compression ratio M200 2-inch exit compression driver, achieving 3dB greater output with extremely low distortion. The passive MF/HF horn signal aligns the drivers for the best possible music and speech performance. The result is an excellent loudspeaker system that is capable of exceeding expectations in any application.
The family of R2-MAX loudspeakers deliver outstanding musical performance. Housed in the same size enclosures as Biampâs flagship R2 models, the R2-MAX models feature powerful 1.4-inch exit HF drivers, high performing midrange drivers, and 600 watt neodymium woofers, delivering well behaved coverage patterns, exceptional intelligibility and flat frequency response. While providing the outstanding dynamic range and projection expected from R SERIES, R2-MAX loudspeakers offer listeners a superior musical experience with higher output than the standard R2.
AMPLIFIED LOUDSPEAKER CONTROLLERS
Community ALC-1604D is recommended for this product. Higher power ALC models may be used safely as well.
All R2-MAX models (R2-52MAX, R2-64MAX, R2-66MAX, and R2-94MAX) comply with the United States Trade Agreement Act (TAA), allowing it to be included in GSA Schedule contractorsâ sales bids for the U.S. federal government.
