Community R2-694Z-EN
Defined coverage, Type B, 3-way, weather-resistant, loudspeaker system with 60°- 90° x 40° coverage and EN54-24 certified.
Defined coverage, Type B, 3-way, weather-resistant, loudspeaker system with 60°- 90° x 40° coverage and EN54-24 certified.
Key Features
- 60° – 90° x 40°
- EN54-24 certified
- High-fidelity, high efficiency, full-range reproduction of music and speech
- Application-specific coverage pattern
- 100% weather-resistant and corrosion-resistant construction
- Included weather-resistant mounting yoke
- 5-year warranty
- Compliant with the US Trade Agreement Act (TAA)

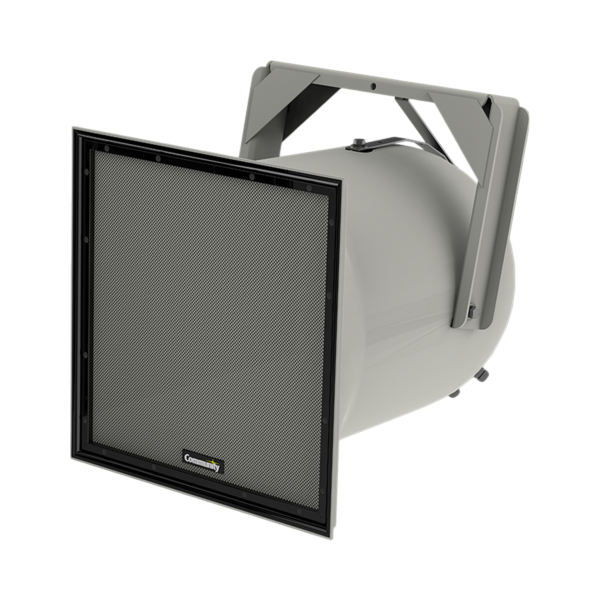

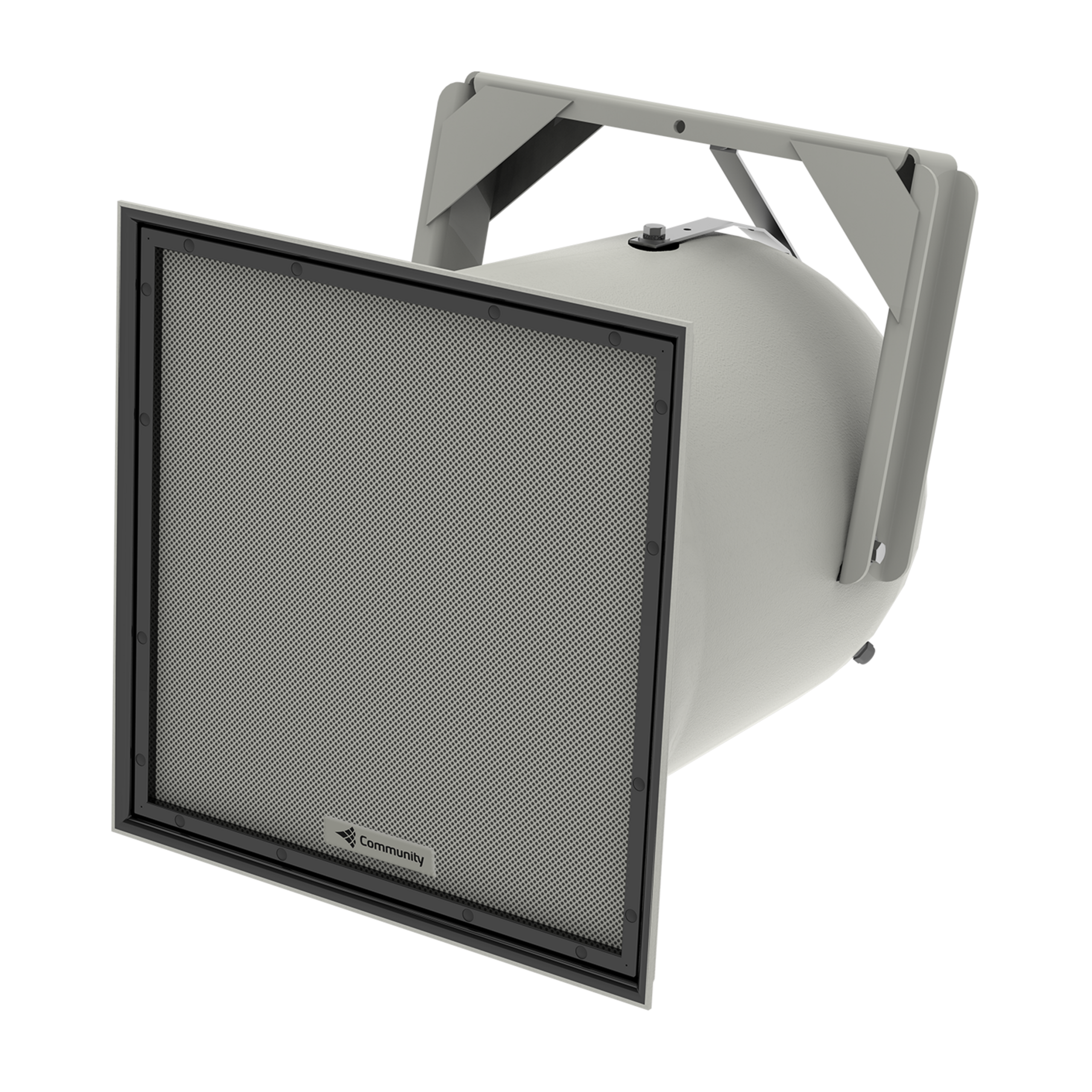

The R2-694Z-EN is an all horn loaded triaxial design using precision waveguides manufactured of hand-laminated fiberglass. The outer enclosure forms a double wall construction with the internal bass horn, providing a completely weather-sealed chamber for the LF drivers. The mid/high frequency horn assembly is mounted in the mouth of the bass horn. A high quality passive crossover with dynamic driver protection is included. The result is a loudspeaker system that is extremely strong, non-resonant, weather-resistant, and easy to install.
The R2-694Z-EN full-range loudspeaker system is engineered to provide quality, long throw full-range sound projection in a variety of outdoor and indoor applications. Its wide, smooth frequency response and high efficiency ensures high-fidelity music reproduction along with superb projection of clear, intelligible speech at very low distortion.
AMPLIFIED LOUDSPEAKER CONTROLLERS
Community ALC404D is recommended for this product. Higher power ALC models may be used safely as well.
All R2 models (R2-474Z, R2-694Z, R2-52Z, R2-77Z, and R2-94Z) comply with the United States Trade Agreement Act (TAA), allowing it to be included in GSA Schedule contractorsâ sales bids for the U.S. federal government.
